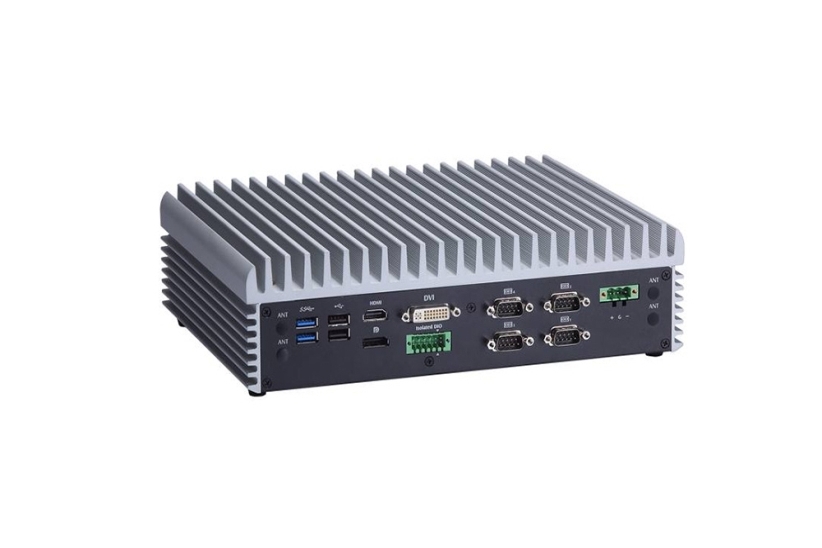

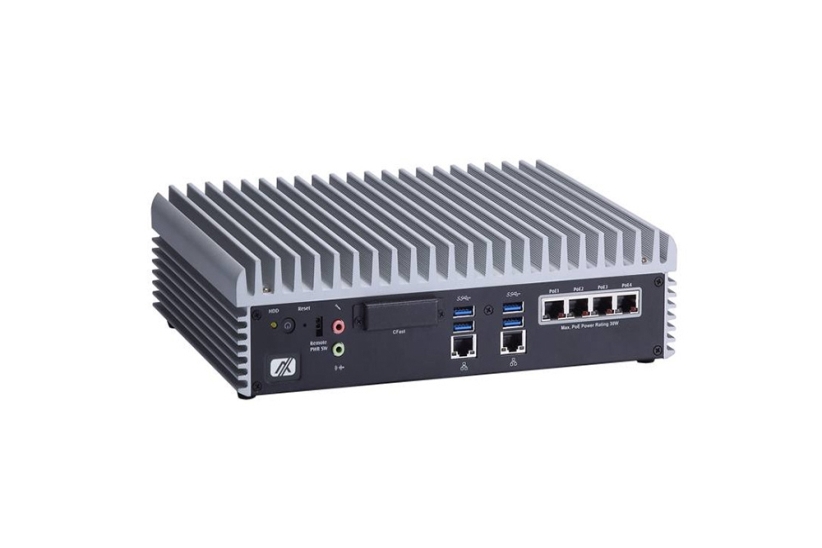

eBOX671-885-FL

Fanless Embedded System with LGA1150 Socket 4th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q87, 4 PoE, 6 USB

LGA1150 4th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Haswell and Haswell Refresh)

Intel® Q87 chipset

Fanless operation design with full feature I/O

4-CH GbE PoE

2.5” SATA HDD drive bay, mSATA and CFast™ slot

2 internal PCI Express Mini Card slots, 1 SIM card slot

DisplayPort, HDMI and DVI-I with triple-view supported

Supports RAID 0/1, Jumbo Frame (9.5K),WoL, PXE and Teaming

Supports Intel® AMT, Intel® VT-d, Intel® vPro™ and Intel® RST

The eBOX671-885-FL powerful industrial-grade embedded vision system features PoE (power-over-Ethernet) support. To provide better computing performance, the powerful PoE embedded vision system supports LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 or Celeron™ processor (Codename: Haswell/Haswell-refresh). Its four channel Gigabit PoE ports allow multiple cabling to cameras and any PoE power device. With high-end CPU and multi-I/O connectivity, this fanless embedded vision system is well suited to multi-camera imaging applications such as optical inspection, surveillance system and IoT & M2M-related applications.

CPU	4th generation Intel® Core™ i7/i5/i3 & Celeron® processors with TDP max. up to 45W
Chipset	Intel® Q87
System Memory	2 x 204-pin SO-DIMM DDR3-1333/1600, up to 16 GB
BIOS	AMI
COM	2 x RS-232/422/485 2 x RS-232
USB	6 x USB 3.0 2 x USB 2.0
Ethernet/PoE	2 x 10/100/1000 Mbps Ethernet (Intel® i211) 4 x 10/100/1000 Mbps PoE 4 ports full-load, IEEE802.3af Class 2 (7 Watt) 2 ports full-load, IEEE802.3af Class 3 (15.4 Watt) 1 ports full-load, IEEE802.3at Class 4 (30 Watt)
Display	1 x DVI-I 1 x HDMI 1 x DisplayPort
Digital I/O	8-CH Programmable/Isolated DI/DO
Audio	MIC-in/Line-out
Storage	2 x 2.5” SATA HDD bay with RAID 0/1 (max. height 9.5 mm) 1 x CFast™ 2 x mSATA
Expansion	2 x Full-size PCI Express Mini Card (USB+PCIe signal) 1 x SIM Card
Others	1 x 24VDC Power input connector 1 x Power switch 1 x Reset switch 1 x Remote Power Switch 3 x Antenna opening
Power Supply	24VDC input
Watchdog Timer	255 levels, 1 ~ 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C ~ +50°C (-4°F ~ +122°F) (with W.T. SSD or CFast™, CPU TDP 45W)
Relative Humidity	10% ~ 90%, non-condensing
Vibration	N/A
Dimensions (W x D x H)	280 x 210 x 76 mm (11.02" x 8.27" x 2.99")
Weight (net/gross)	4.31 kg (9.5 lb)/ 5.1 kg (11.24 lb)
Certifications	CE
EOS Support	WES7, WE8S, Linux
Mounting	Wall mount DIN-rail

eBOX671-885-FL-DC
Fanless embedded system with Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q87, DVI-I/HDMI/DisplayPort, dual HDD, 4 PoE, 2 GbE LANs, 8 USB, audio, 4 COM and 8-CH TTL digital I/O and 24 VDC
eBOX671-885-FL-DC-I
Fanless embedded system with Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q87, DVI-I/HDMI/DisplayPort, dual HDD, 4 PoE, 2 GbE LANs, 8 USB, audio, 4 COM and 8-CH isolated digital I/O and 24 VDC
2.5” SATA HDD
80GB or above
2.5” SATA SSD
40GB or above
DDR3 SO-DIMM
1GB ~ 8GB
CFast™
512MB or above
Wall mount kit
8816K6713A0E
DIN-rail kit
8816K671030E
Wi-Fi module
3G module
