eBOX800-841-FL

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LANs, 2 USB, 2 COM and 9 to 36 V

IP67-rating for outdoor use

Intel® Atom® processor E3845 onboard

4 N-jack antenna openings with water proof design

-30°C to +60°C operating temperature range

9 to 36 VDC wide range power input

Features M12 lockable I/Os

Rich I/O options for customized designs and mission-critical projects

Trusted Platform Module 1.2 (TPM) 1.2

Datasheed (PDF)

The eBOX800-841-FL is a fanless embedded system with IP67 protection for mission-critical market. The rugged embedded system is designed for fanless operation at temperatures from -30°C to 60°C. Its 9-36V wide range DC input with various power protection, M12 lockable connectors and N-jack waterproof antenna connectors meet the performance needs for industrial Internet of Things (IIoT) applications. The eBOX800-841-FL is powered by the onboard quad-core Intel® Atom™ E3845 processor (formally codename: Bay Trail). This hardened embedded box PC comes with one DDR3L SO-DIMM slot with system memory up to 8 GB. Additionally, one 2.5" SATA HDD, one mSATA and one CFast™ are available to maintain sufficient storage.

CPU	Intel® Atom™ processor E3845 1.91 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 (M12-type)
USB	2 x USB 2.0 (M12-type)
Ethernet/PoE	2 x 10/100/1000 Mbps (Intel® i210-IT, M12)
Display	1 x VGA (M12-type)
Digital I/O	N/A
Audio	N/A
Storage	1 x 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) 1 x CFast™
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Others	1 x 9~36VDC power input (M12-type) 1 x ATX power switch w/indicator 4 x N-jack type antenna opening
Power Supply	9 to 36 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature	-30°C to +60°C (-22°F to +140°F) (with E3845, W.T. SSD/DRAM)
Relative Humidity	10% to 95% , non-condensing
Vibration	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)	4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications	CE,FCC Class A
EOS Support	Win 10 IoT, WE8S, WES7, Linux
Mounting	Wall mount VESA mount

eBOX800-841-FL-DC
Rugged IP67-rated fanless embedded system with Intel® Atom® E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9 to 36 VDC
2.5” SATA HDD (W.T.)
80GB or above
2.5” SATA SSD (W.T.)
100GB or above
DDR3L SO-DIMM (W.T.)
2GB to 8GB
CFast™
64GB or above
mSATA
64GB or above
8816K8002A0E
Wi-Fi module
3G/LTE module
594B8122100E
RS-232 serial cable, 180 cm
594B8152710E
LAN cable, 180 cm
50966224010E
24V 90W M12 power adapter

Ana Sayfa » Endüstriyel Box PC

Daha Detaylı Bilgi İster misiniz?

Altaki formu doldurun.

eBOX800-841-FL

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LANs, 2 USB, 2 COM and 9 to 36 V

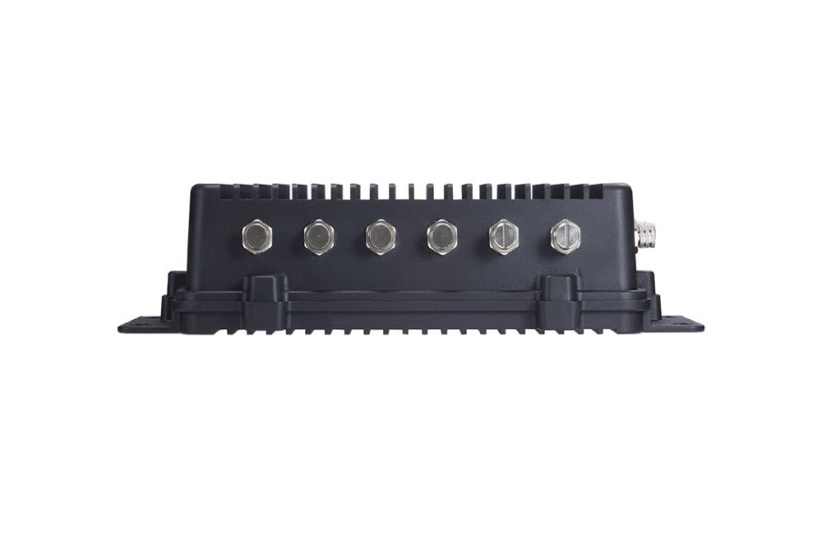

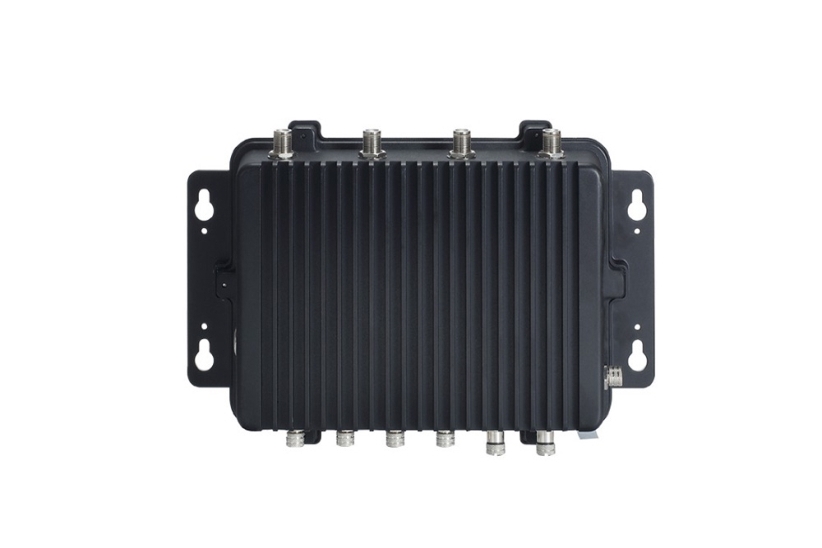

Ürün Resmi
