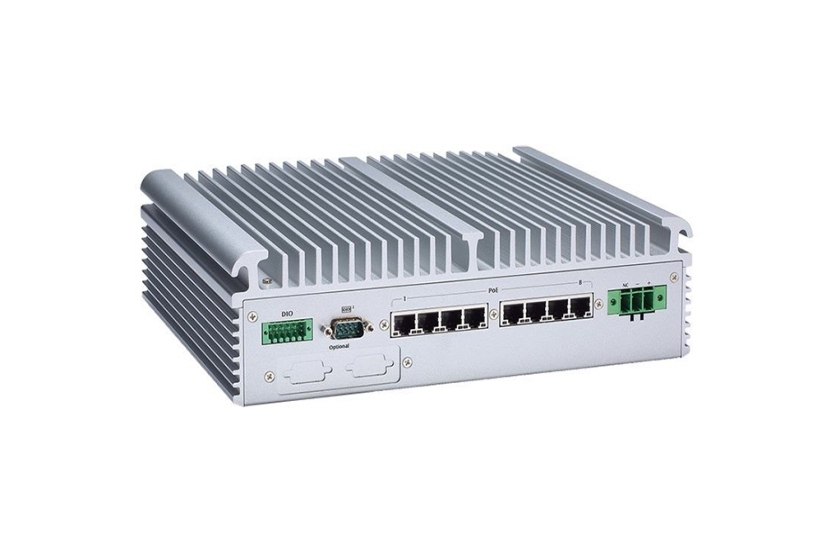

The eBOX671-517-FL supports 8-port Gigabit PoE and able to work under harsh temperatures. Its eight Gigabit PoE ports allow multiple cabling to cameras and any PoE power device; and, the eBOX671-517-FL is specifically designed for security surveillance, optical inspection, and edge computing applications. This rugged NVR embedded box PC is powered by the 7th/6th generation Intel® Core™ (Kaby Lake/Skylake) or Intel® Celeron® processors with a 35W/65W TDP and comes with Intel® Q170 chipset. The eBOX671-517-FL comes in great expansion possibilities, including a flexible I/O module slot with a wide selection of PCIe Mini modules and four PCI Express Mini Card slots. It also has two front-accessible SIM slots and four SMA-type antenna connectors. For storage, this high performance fanless embedded system has two SATA HDD drive bays with a height of up to 15 mm and one optional mSATA for RAID 0 and 1. Moreover, the embedded device supports two non-ECC 260-pin DDR4 SO-DIMM slots for up to 32GB of system memory.
| CPU |
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)
|
| Chipset |
|
| System Memory |
- 2 x 260-pin DDR4 non-ECC SO-DIMM, up to 32GB
|
| BIOS |
|
| COM |
|
| USB |
|
| Ethernet/PoE |
- 8 x Gigabit PoE (IEEE 802.3af/802.3at) port (Intel® i211-AT, max. up to 90W)
|
| Display |
- 1 x HDMI 1.4b
- 1 x VGA
- 1 x DVI-D
|
| Digital I/O |
- 1 x 6-in/2-out isolated DIO
|
| Audio |
|
| Storage |
- 2 x SATA HDD drive bay (max. up 15 mm height)
- 1 x mSATA (enabled in BIOS setting)
|
| Expansion |
- 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
- 1 x Half-size PCI Express Mini Card slot (mSATA + USB + PCI Express signal)
- 1 x Half-size USB Mini Card slot
- 2 x External accessible SIM slot
|
| Others |
- 1 x Flexible I/O window (default: 2 x DB9 half cut bracket)
- 4 x SMA-type antenna connector
- 1 x Phoenix type VDC power input connector
|
| Power Supply |
- 24 VDC (ACC is disabled by default)
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- 35W Tj=100°C CPU:
-40°C to +70°C (-40°F to +158°F) with W.T. SSD
- 65W Tj=100°C CPU:
-40°C to +55°C (-40°F to +131°F) with W.T. SSD
- 35W Tj=80°C CPU:
-40°C to +50°C (-40°F to +122°F) with W.T. SSD
|
| Relative Humidity |
- 10% to 90%, non-condensing
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
|
Dimensions
(W x D x H) |
- 280 x 210 x 79.6 mm (11.2" x 8.26" x 3.13")
|
| Weight (net/gross) |
- 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
|
| Certifications |
|
| EOS Support |
|
| Mounting |
- Wall mount kit
- DIN-rail kit
|
- eBOX671-517-FL-DC
- Fanless embedded system with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors, Intel® Q170, VGA, DVI-D, HDMI, 8-CH PoE, 6 USB and 24 VDC
- 2.5" SATA HDD
- 80GB or above
- 2.5" SATA SSD
- 100GB or above
- DDR4 SO-DIMM
- 4GB to 16GB
- mSATA
- 64GB or above
- Wi-Fi module
- 3G/LTE module
- Wall mount kit
- DIN-rail kit
- 50906D24000E
- 24V 120W adapter
- E392903102
- AX92903 CANbus PCI Express Mini module
- E392903103
- AX92903 CAN module with CANopen
- E392902103
- AX92902 LAN PCI Express Mini module
- E392906101
- AX92906 COM PCI Express Mini module
- E392904102
- AX92904 DIO PCI Express Mini module
