eBOX625-853-FL

CPU	Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz)
Chipset	SoC integrated
System Memory	1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x RS-232/422/485 3 x RS-232
USB	3 x USB 3.0 1 x USB 2.0
Ethernet/PoE	2 x 10/100/1000Mbps (Intel® i211-AT)
Display	1 x HDMI (4K supported) 1 x VGA
Digital I/O	N/A
Audio	MIC-in/Line-out
Storage	1 x 2.5” HDD drive bay (max. up 15 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion	1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x Full-size PCI Express Mini Card slot (PCI Express + SATA signal) 1 x SIM slot
Others	3 x Antenna opening 1 x Screw type VDC power input connector
Power Supply	Input: AC 90-264V, AC 36 W adapter with lock Output: DC 12V@3A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)
Relative Humidity	10% to 95%, non-condensing
Vibration	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	200 x 120 x 46mm (7.87” x 4.72” x 1.81”)
Weight (net/gross)	1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certifications	CE
EOS Support	WES7, WE8S, Win10 IoT, Linux
Mounting	Wall mount DIN-rail VESA mount

eBOX625-853-FL-N3160-US

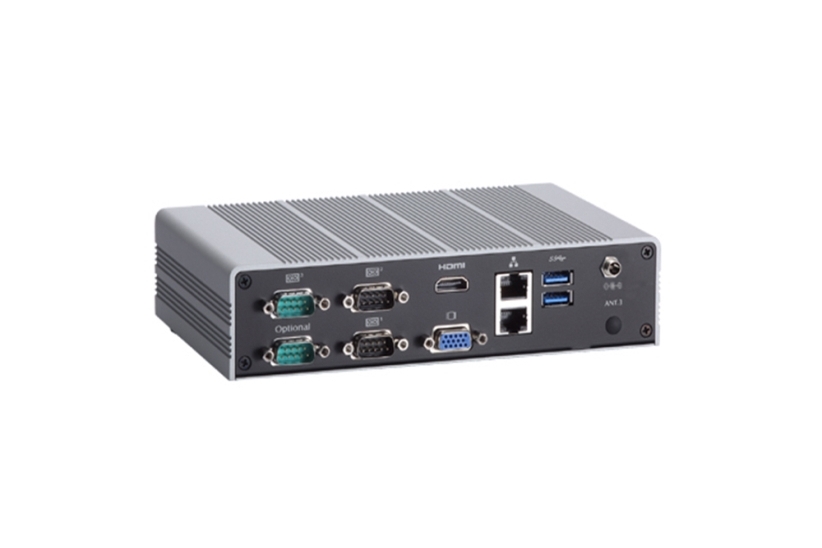

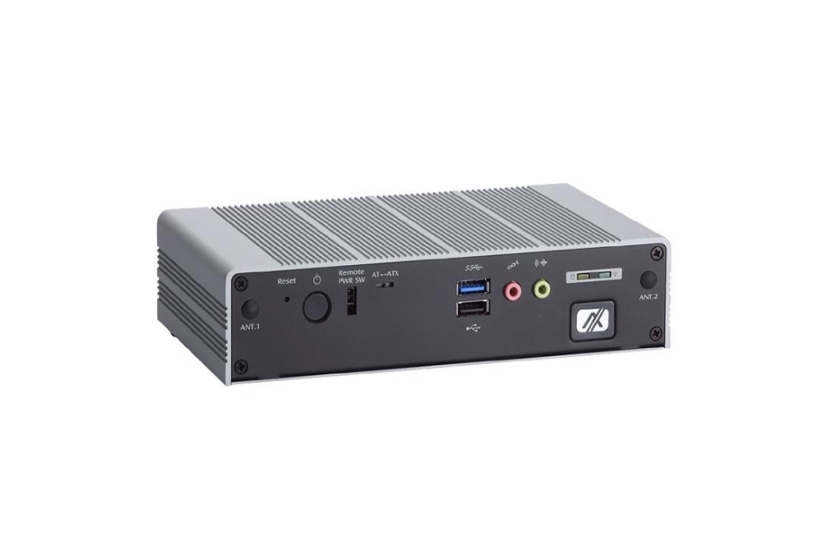

Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, 2 PCI Express Mini Card slots, AC/DC adapter and US power cord
eBOX625-853-FL-N3160-EU
Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, 2 PCI Express Mini Card slots, AC/DC adapter and EU power cord
eBOX625-853-FL-N3160-US-DIO
Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 3 COM, 1 DIO, 2 GbE LANs, 4 USB, 2 PCI Express Mini Card, AC/DC adapter and US power cord
2.5” SATA HDD
64GB or above
2.5” SATA SSD
100GB or above
DDR3L SO-DIMM
2GB to 8GB
mSATA
64MB or above
8816K6271A0E
Wall mount Kit
8816K6272A0E
VESA mount kit
8816K6273A0E
DIN-rail kit
8816K6603A0E
Wi-Fi module
3G/LTE module
