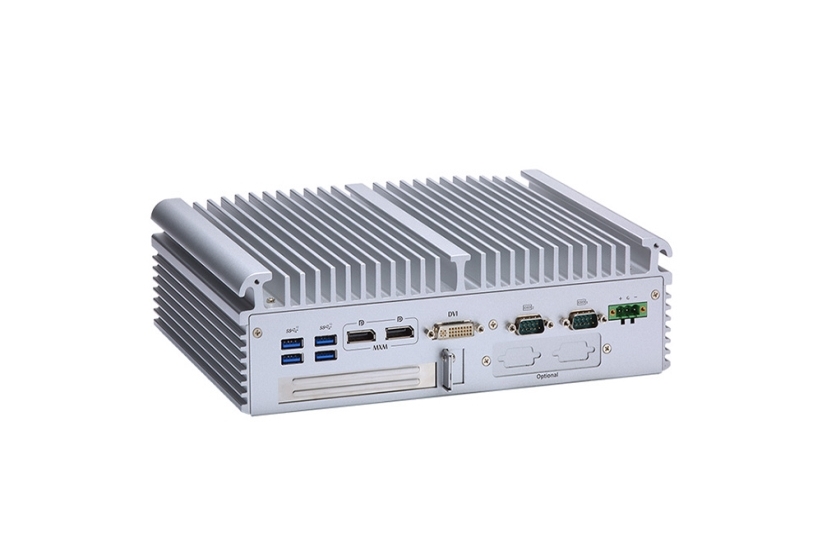

eBOX710-521-FL

CPU	Intel® Xeon, LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processors (35W)
Chipset	Intel® C246
System Memory	2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	4 x USB 3.2 Gen2 2 x USB 3.2 Gen1
Ethernet/PoE	6 x 10/100/1000 Mbps Ethernet (5 x i210-IT & i219-LM)
Display	1 x HDMI 1 x DisplayPort 1 x DVI-I
Digital I/O	N/A
Audio	N/A
Storage	2 x 2.5" HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion	2 x Full-size PCI Express Mini Card slot (USB + PCIe signal) 1 x PCIe x4 slot 2 x SIM slot
Others	TPM 2.0 1 x Phoenix type VDC power input connector 1 x AT/ATX quick switch 1 x ATX power switch 1 x Reset switch 1 x Remote switch 1 x Flexible I/O window (Default : 2 x DB9 half-cut bracket) 4 x SMA-type antenna connector
Power Supply	24 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	40°C to 70°C (-40°F to 158°F)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine, 11 ms duration)
Dimensions (W x D x H)	280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)	4.8 kg (10.58 lb)/5.6 kg (12.34 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount kit DIN-rail kit
