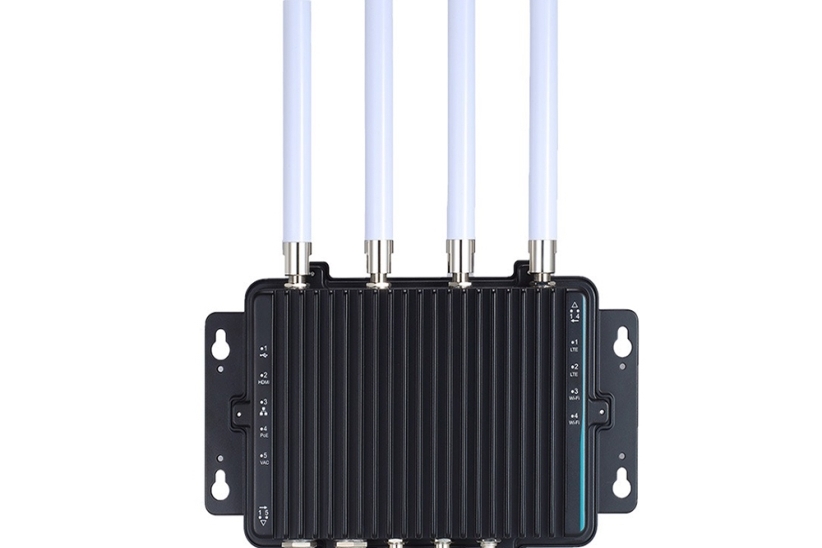

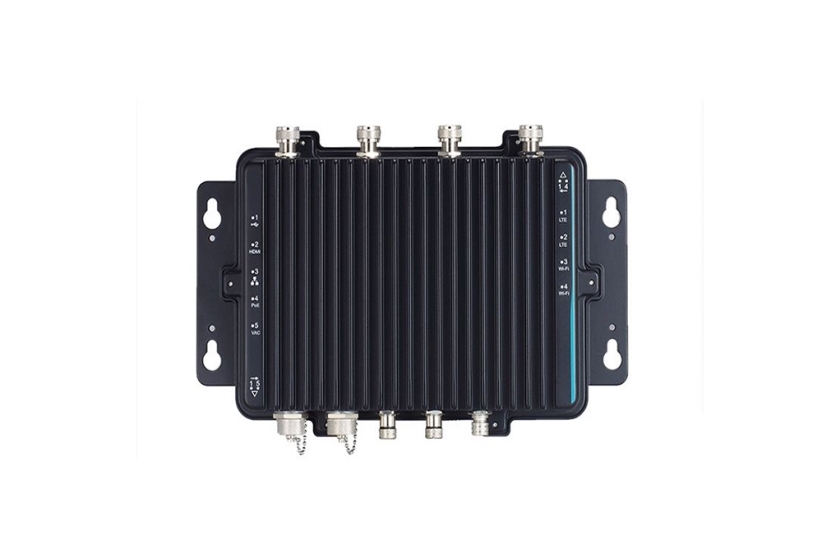

eBOX800-900-FL

Rugged IP67-rated Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI, 1 GbE LAN, 1-CH PoE, 1 USB 2.0 and 100 to 240 VA

  • IP67-rating for outdoor use
  • NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU
  • High AI computing performance for GPU-accelerated processing
  • -30°C to +60°C operating temperature range
  • 100 to 240 VAC wide range power input with 10kV surge protection
  • 4 N-jack antenna openings with water proof design

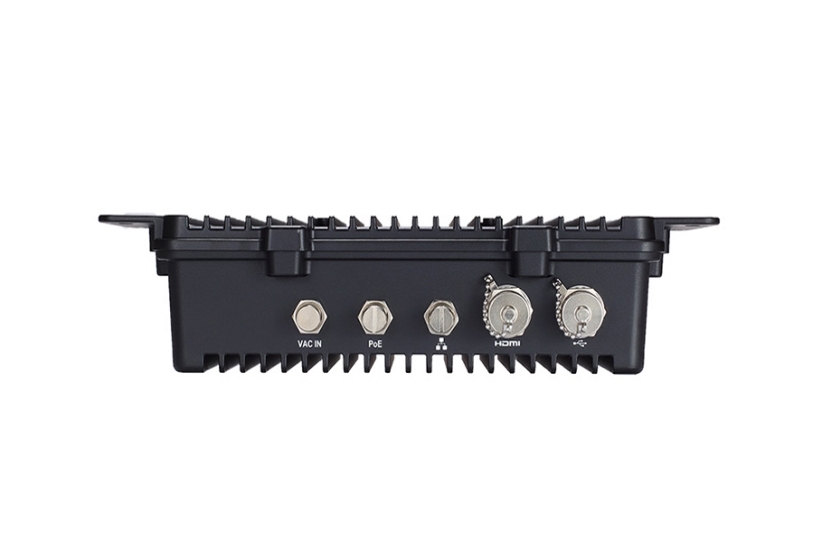

  • Features M12 lockable I/Os
  • 1 IEEE 802.3at GbE LAN port (30W)
  • Rich I/O options for customized designs and mission-critical projects

The Artificial Intelligence (AI) embedded system, eBOX800-900-FL, adopts a full IP67-rated extruded aluminum and heavy-duty steel case for dust protection and water resistance. Moreover, the AI embedded system comes with a wide operating temperature range of -30°C to 60°C (-22°F to +140°F) and a vibration endurance for up to 3Grms. The embedded system is powered by the NVIDIA Jetson™ TX2 module which has a powerful 64-bit ARM A57 processor and 256-core NVIDIA® Pascal GPU. It features M12 type I/O connectors and four N-jack waterproof antenna openings for operational stability in rugged environments. The eBOX800-900-FL is ideal for AI edge computing and deep learning applications, such as smart city, smart manufacturing, smart transportation, and much more. The eBOX800-900-FL has 8GB of LPDDR4 memory and 32GB eMMC onboard. It comes with a wide range of 100 to 240 VAC power input with 10kV surge protection. The rugged edge computer also features one M.2 SSD PCIe 2.0 x4 socket which supports high-performance NVM Express interface for extensive storage needs. Furthermore, the embedded box PC is equipped with a PoE port to support the applications that require the use of IP cameras or any PoE device, i.e., traffic flow monitoring, license plate recognition, vehicle recognition, machine vision.

CPU
  • CPU Board: NVIDIA® JETSON™ TX2
  • CPU: HMP dual denver 2/2 MB L2 + quad ARM® A57/2 MB L2
  • GPU: NVIDIA® Pascal™, 256 CUDA cores
Chipset
  • SoC integrated
System Memory
  • 8GB 128-bit LPDDR4 onboard
BIOS
  • N/A
COM
  • N/A
USB
  • 1 x C3 USB 2.0
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (M12 X-Code)
  • 1 x Gigabit PoE (IEEE 802.3at, 30W) (M12 X-Code)
Display
  • 1 x C3 HDMI with FHD supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 2280 KEY M with PCIe 2.0 x4 for NVMe SSD (optional)
  • Onboard 32GB eMMC (via JETSON™ TX2)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 4 x N-jack antenna opening with water proof design
Power Supply
  • 100 to 240 VAC with 10kV SPD
Watchdog Timer
  • Watchdog timer embedded in NVIDIA® JETSON™ TX2
Construction
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% to 95% , non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Shock
Dimensions
(W x D x H)
  • 210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)
  • 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Linux ubuntu 16.04
Mounting
  • Wall mount
  • VESA mount
  • eBOX800-900-FL
  • Rugged IP67-rated fanless edge system with NVIDIA® JETSON™ TX2,1 HDMI, 1 GbE LAN, 1 Gigabit PoE, 1 USB 2.0 and 100 to 240 VAC power input
  • M.2 NVMe
  • 64GB or above
  • 594B8152710E
  • LAN/PoE cable,180 cm
  • 594K2303810E
  • HDMI cable, 100 cm
  • 594K2302810E
  • USB cable, 200 cm
  • 59902000040E
  • US AC power cord, 180 cm
  • LTE module
