| Display | |
|---|---|
| Size | 21.5 inch |
| Touch Type | 5-wire resistive touch/projected capacitive multi touch (optional) |
| Transmitiance | 85% (capacitive) / 78% (resistive) |
| Resolution | 1980*1020 |
| Max Color | 16.7M |
| Luminance | 350 cd/m2 |
| View Angles | -85 ~ 85 ° (H), -85 ~ 85 ° (V) |
| LED Lifetime | 30,000 hrs |
| System | |
| CPU | Intel® Celeron J4125/J6412 Intel® Core™ 8/10/11th Gen Core i5 i7 |
| Memory | J4125/J6412 SO-DIMMx1 up to 16GB; Core i5/i7 SO-DIMM x2 up to 32GB |
| Storage | 1 x M.2 2242/2260/2280 SATA |
| 1x 2.5″ SATA HDD/SSD (optional) | |
| 1 x M.2 2280 NVME | |

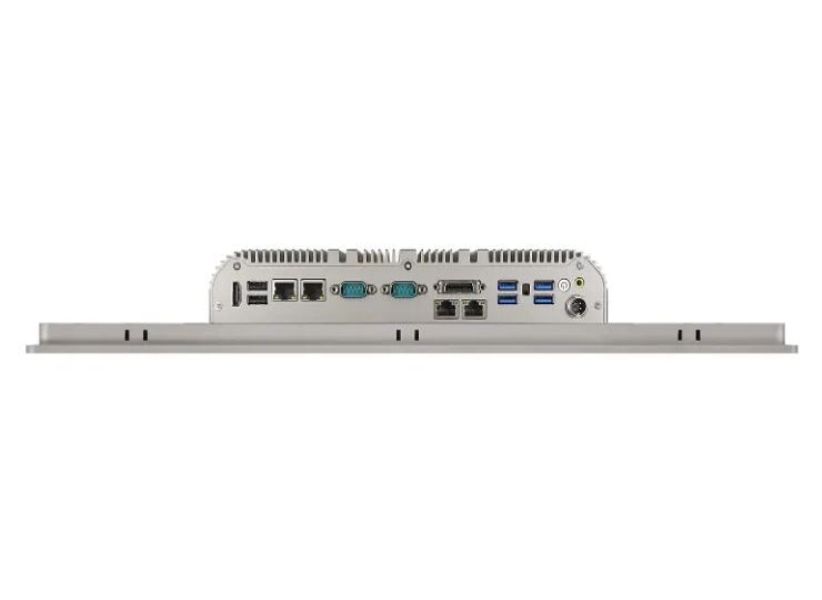

| I/O Ports | |
| USB | 2xUSB 3.0+ 4x USB2.0 |
| Serial | 2x COM (COM1& 2 optional RS-232/422/485) |
| Ethernet | 2x GbE LAN (Optional 4*Ethernet LAN ) |
| Display | 1x HDMI |
| Audio | 1x Audio line out |
| Speaker | Optional 2 x 8Ω 1W speaker |
| AT/ATX switch | 1x AT/ATX slide switch |
| Expansion IO | Expansion IO for 4xCOM ports, 10 bits GPIO, 1 Remote Switch |
| Expansion Slot | |
| M.2 | 1x M.2 slot for 4G/5G LTE module, SIM card slot on board. |
| M.2 | 1x M.2 for WIFI & BT |
| Power | |
| Button | Yes |
| DC Input | 9-36V DC |
| Power Connector | 4 pin Aviation Connector |
| Operating System | |
| Windows | Windows 10, Windows 11/ Linux |
| Mechanical | |
| Dimensions (W x D x H) | 533.60x 327.12 x 70.9 mm |
| Weight (N.W.) | 6.8 KG |
| Mounting | Panel mount, wall mount bracket VESA 75/100 |
| Material | Aluminum alloy |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| IP Rating | IP65 compliant (for front panel) |
| Certification | |
| EMC | CE, FCC |
