GOT3187W-834-PCT

18.5" WXGA TFT Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)

  • 18.5" WXGA projected capacitive multi-touch wide screen
  • Fanless and modulized design
  • Intel® Celeron® processor J1900
  • 2.5" 7/9.5 mm SATA HDD and CFast™/mSATA
  • 3G, WLAN module & antennas (optional)

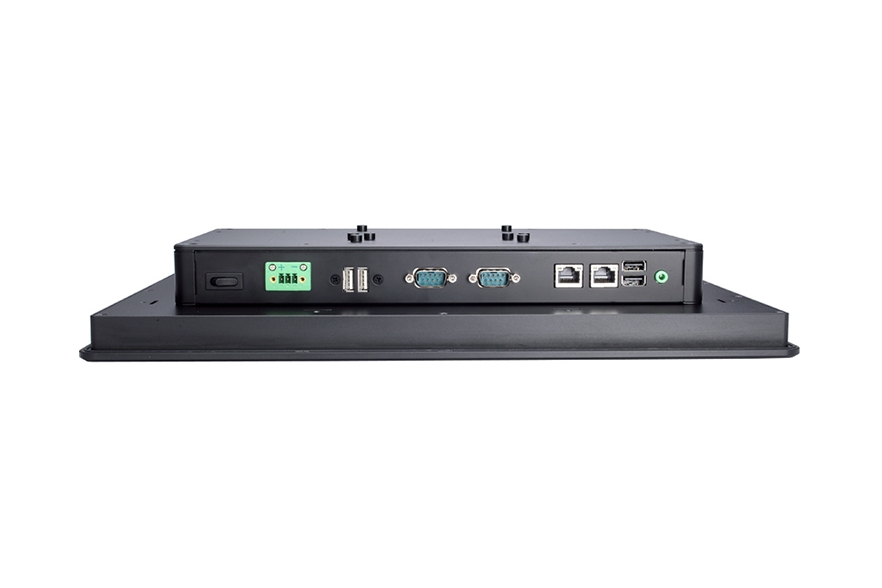

  • 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports
  • IP65 aluminum front bezel
  • Supports panel mount and optional VESA arm/desktop stand/wall mount
  • -10°C to +50°C wide temperature range
  • Adjust RS-232/422/485 setting via BIOS

The GOT3187W-834-PCT, a new quad-core fanless multi-touch panel computer is designed for embedded computing or machine control applications. The compact GOT3187W-834-PCT adopts 18.5-inch WXGA TFT LCD and supports the low power consumption four cores Intel® Celeron® processor J1900 with a temperature range of -10°C to +50°C (14°F to 122°F) for mission critical environments. Multiple built-in high-speed LAN ports and USB ports enable fast and efficient data acquisition and communication. Additionally, the widescreen touch panel PC has passed heavy industrial CE standard testing and is designed to operate in trains, heavy-vehicles, heavy industries, and oil pipe monitoring systems.

LCD Panel
  • 18.5" WXGA TFT LCD
  • 350 nits
  • 1366 x 768 pixels
CPU
  • Intel® Celeron® processor J1900 2.0 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333/1600, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • N/A
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x CFast™ or 1 x mSATA
Expansion
  • 1 x Full-Size PCI Express Mini Card with mSATA
  • 1 x Full-Size PCI Express Mini Card with SIM slot
Others
  • 1 x Switch for power on/off (ATX)
  • WLAN antenna (optional)
Touchscreen
  • Projected capacitive multi touch
Front Bezel
  • IP65 front bezel
Power Supply
  • DC version: 9~36VDC
  • AC version: 12 VDC 60W adapter
Power Comsumption
  • 49 W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • -10°C ~ +50°C (+14°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ 40°C; non-condensing
Vibration
  • 2G, 10 ~ 500Hz, random for CFast™
Dimensions
(W x D x H)
  • 460.8 x 58.5 x 285 mm (18.11" x 2.3" x 11.22")
Weight (net/gross)
  • 5.8 kg (12.8 lb)/8.2 kg (18.1 lb)
Certifications
  • CE
EOS
  • Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount
  • GOT3187W-834-PCT-J
  • 18.5" WXGA TFT fanless touch panel computer with Intel® Celeron® J1900 2.0 GHz quad core processor, projected capacitive multi-touch screen and AC-DC 12 VDC power adapter (screw type connector)
  • GOT3187W-834-PCT-DC
  • 18.5" WXGA TFT fanless touch panel computer with Intel® Celeron® J1900 2.0 GHz quad core processor, projected capacitive multi-touch screen and 9~36 VDC terminal block connector
  • Wi-Fi
  • 82231770050E
  • GOT3177T-834 wall mount kit
  • 50906D24000E
  • Adaptor 24V/120W, wire only, FSP120-AAAN3 (for DC model)
