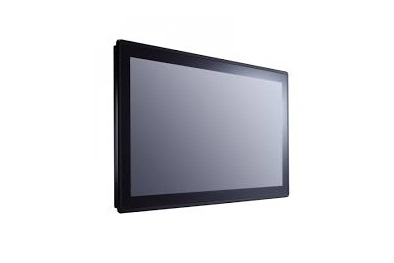

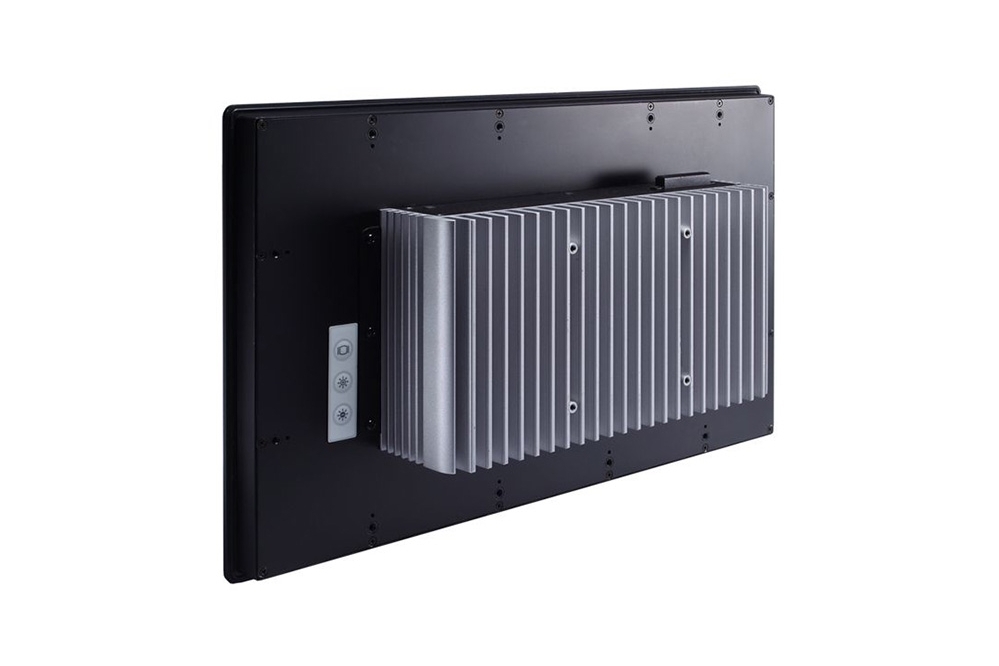

GOT3217W-881-PCT

21.5" FHD TFT Fanless Multi-touch Panel Computer with LGA1150 Socket 4th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron®

  • 21.5" FHD projected capacitive multi-touch screen
  • Fanless design with LGA1150 socket 4th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Haswell)
  • 2.5" 7/9.5 mm SATA HDD, CFast™ and mSATA
  • WLAN module & antenna (optional)

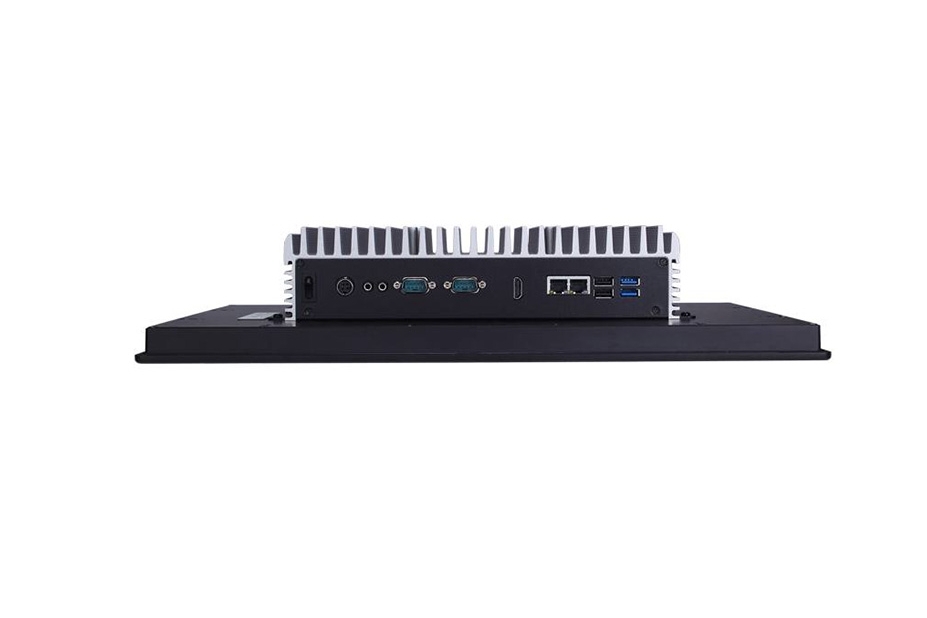

  • 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 2 COM ports
  • IP65 flat front bezel and rugged design
  • Supports panel mount and optional VESA arm/desktop stand/wall mount
  • 2 PCI Express Mini card slots

The GOT3217W-881-PCT fanless multi-touch panel PC features the new Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors. The panel PC is equipped with a 21.5” Full HD TFT LCD with 250nits brightness. The fanless design and waterproof enclosure (IP65-rated front panel) makes it highly reliable and can avoid damage from spillage. The compact 21.5-inch wide-screen touch panel PC also has slim design and rich I/O connectivity, offers optional connection to 3G/GPRS and Wi-Fi. The Intel® Core™-based GOT3217W-881-PCT is an excellent human machine interface (HMI) platform for applications in shopping center and supermarket as a self-service kiosk, factory, and building automation fields. To meet different application needs, the GOT3217W-881-PCT panel PC features dual PCI Express Mini Card slots, one 2.5" SATA HDD/SSD bay, and one CFast™ socket. Other I/O interfaces include two RS-232/422/485 ports, two USB 2.0 ports, two USB 3.0 ports, dual Gigabit Ethernet ports, audio (Line-out), and a HDMI output. The ruggedized panel PC can be panel mounted, wall mounted, VESA mounted, or desk mounted. It is certified with CE to meet industry grade approval standards and also compatible with Windows® 7/8 Professional and Windows® Embedded Standard 7/8.

LCD Panel
  • 21.5" Full HD TFT LCD
  • 250 nits
  • 1920 x 1080
CPU
  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Haswell), up to 45W TDP
Chipset
  • Intel® H81
System Memory
  • 1 x 204-pin SO-DIMM DDR3 1333/1600, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210-AT & i217-V)
Display
  • 1 x HDMI
Audio
  • Line-out & MIC-in
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x CFast™
  • 1 x mSATA
Expansion
  • 2 x PCI Express Mini Card
Others
  • WLAN module & antenna
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 19VDC with adapter
Power Comsumption
  • 112W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Relative Humidity
  • 20% ~ 90% @ 40°C, non-condensing
Vibration
  • 1.0 G, 10 ~ 500 Hz, random for CFast™ card
Dimensions
(W x D x H)
  • 547.6 x 89.0 x 339.0 mm (21.56" x 3.50" x 13.35")
Weight (net/gross)
  • 8.1 kg (18.75 lb)/11.0 kg (24.25 lb)
Certifications
  • CE
EOS
  • Windows® 8.1, WE 8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount
  • GOT3217W-881-PCT-NP
  • 21.5" FHD TFT fanless touch panel computer with LGA1150 socket Intel® 4th generation Core™ i7/i5/i3, Pentium® & Celeron® processor, projected capacitive multi-touch screen and AC-DC 19 VDC power adapter (power DIN 4P connector)
  • Wi-Fi
  • 4G
  • 82231770050E
  • GOT3177T-834 wall mount kit
