GOT318A-ELK-WCD

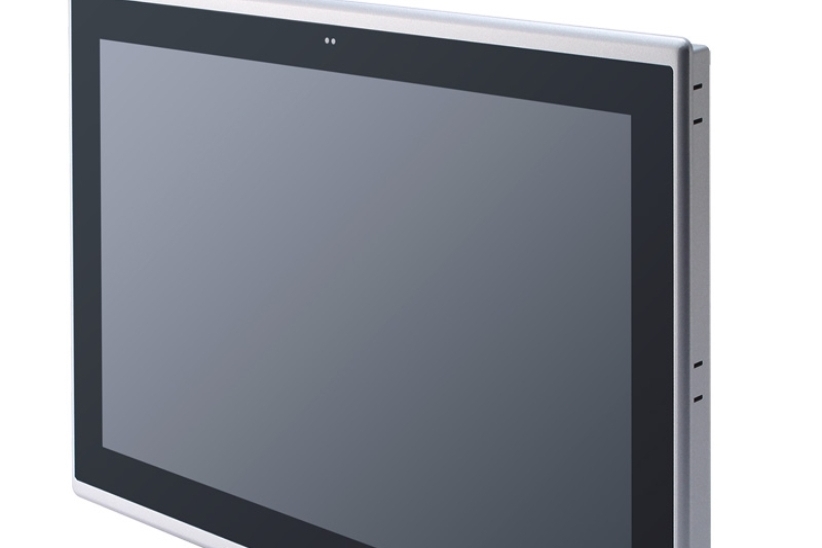

18.5" FHD TFT Multi-touch Panel Computer with Intel® Celeron® Processor J6412

Datasheed (PDF)

Features

  • 18.5" FHD projected capacitive multi-touch widescreen
  • Fanless design with Intel® Celeron® processor J6412 (Elkhart Lake)
  • Supports WLAN module and antenna (optional)
  • 2.5" SATA SSD

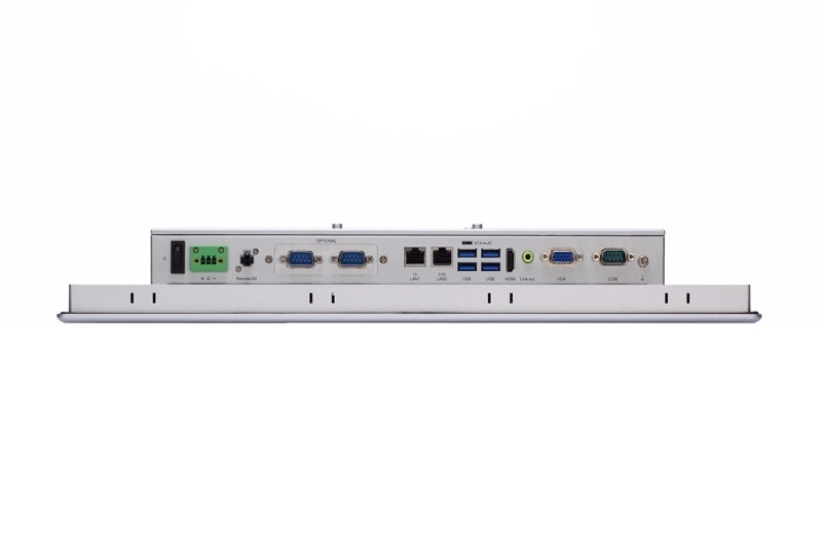

  • 2 LAN, 4 USB, 1 COM, 1 HDMI, and 1 VGA
  • IP65-rated aluminum front bezel
  • Supports panel mount, VESA mount, desktop stand, and wall mount
  • Supports proximity and ambient light sensors (optional)
LCD Panel
  • 18.5" FHD TFT LCD
  • 350 nits
  • 1920 x 1080 pixels
CPU
  • Intel® Celeron® processor J6412 (TDP 12W) (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
USB
  • 1 x Flexible I/O (default 2 x RS-232)
  • 4 x USB 3.2 Gen2 (10 Gbps)
Ethernet
  • 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with TSN)
  • 1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI 1.4
  • 1 x VGA
Audio
  • 1 x Line-in/out
Storage
  • 1 x mSATA
  • 1 x 2.5” SATA SSD (7 mm and 9.5 mm height; removable)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • dTPM 2.0
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC version)
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 9 to 36VDC
  • 1 x Terminal block
Power Comsumption
  • 89.2W (Maximum)
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (+14°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 5 to 500Hz, random for 2.5" SATA SSD
Dimensions
(W x D x H)
  • 475 x 59.4 x 302 mm (18.7 " x 2.3" x 11.89")
Weight (net/gross)
  • 5.91 kg (13.02 lb)/ 7.95 kg (17.52 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
EOS
  • Windows® 10 IoT, Windows® 11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount
  • GOT318A-ELK-WCD (P/N-E22B318A00)
  • 18.5" FHD TFT fanless touch panel computer with Intel® Celeron® processor J6412, projected capacitive multi-touch screen, and 9 to 36 VDC terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • RFID kit
  • Barcode scanner kit
  • 881231770A0E
  • Wall mount kit
  • 50906D24000E
  • Adaptor 24V/120W, wire only, FSP120-AAAN3
  • E392902101
  • AX92902+AX93287 full-size PCI Express Mini Module with Gigabit LAN
  • E392903100
  • AX92903 full-size PCI Express Mini Module with CAN Bus
  • E392904101
  • AX92904 full-size PCI Express Mini Module with 32-bit DIO
  • E392906100
  • AX92906 full-size PCI Express Mini Module with COM
