UST200-83H-FL

Robust and Compact DIN-rail Fanless Embedded System with Intel® Atom® x5-E3930 Processor for In-vehicle Gateway

Features

  • CE, FCC certified; ISO 7637-2 compliant
  • Intel® Atom® x5-E3930 processor
  • Extreme cost-effective with fanless and cableless design
  • Wide operating temperature range from -40°C to +70°C
  • Supports 12 & 24 VDC typical in-vehicle power input
  • Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
  • 1 COM or CAN, 2 USB, 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Supports SocketCAN
  • AMS.AXView intelligent remote monitoring

Datasheed (PDF)

Introduction



The UST200-83H-FL is powered by the low-power consumption Intel® Atom™ x5-E3930 processor. It is certified with CE and FCC and is in compliance with ISO 7637-2. With the function of the Smart Ignition power control, the rugged embedded system can arrange a power on/off schedule to protect the vehicle battery from unstable voltage. This high-performance IoT gateway delivers an excellent price-performance ratio for in-vehicle applications.  Thanks to its ruggedized design for harsh environments, the UST200-83H-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration of up to 3 Grms. This IoT gateway supports both wall mounting and DIN-rail mounting. Its ultra-lightweight and compact design is ideal for space constraint environments.



CPU
  • Intel® Atom® x5-E3930 2C @1.3 GHz, TDP: 6.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x DB9 Serial console or RS-232/422/485
USB
  • 2 x USB 2.0
PoE
  • N/A
Ethernet
  • 2 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT)
  • Isolation voltage: 1.5 kV
Display

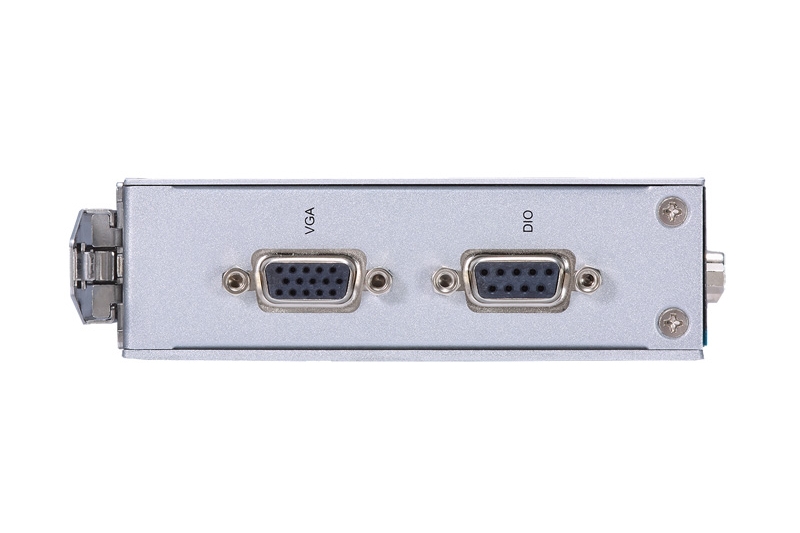

  • 1 x VGA (up to 1920 x 1200 @60Hz)
CANbus
  • 1 x DB9 CANBus 2.0 A/B, supports SocketCAN*
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Audio
  • N/A
Storage
  • 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
  • eMMC (optional)
Expansion
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot ( USB/PCIe with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot ( mSATA/USB/PCIe)
Others

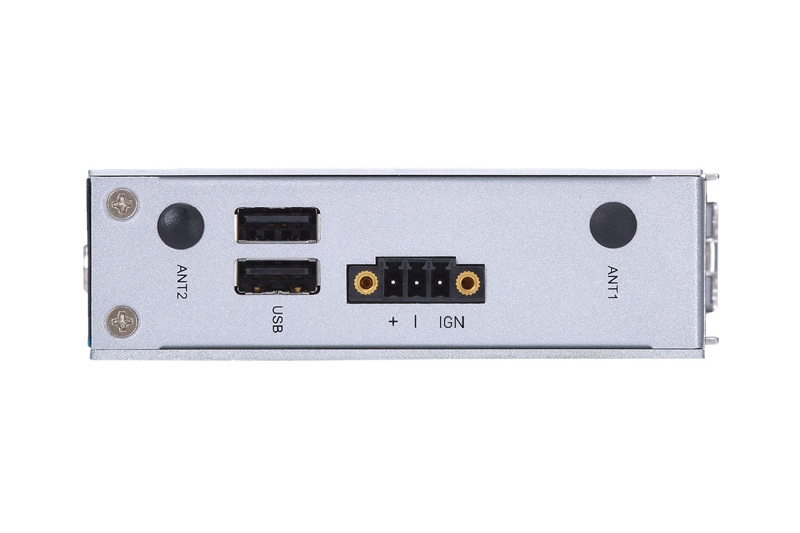

  • 2 x Antenna opening
  •
Power Supply
  • 1 x Terminal block, 12 or 24 VDC with Smart Ignition power control
Power Consumption
  • 12 VDC, 1.39A; 24 VDC, 0.72A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP2
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Gms with mSATA (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications
  • CE (Class A), FCC (Class A) certified
  • ISO 7637-2 compliant
EOS Support
  • Windows® 10 64-bit, Ubuntu 18.04
Software Support
  • AMS.AXView

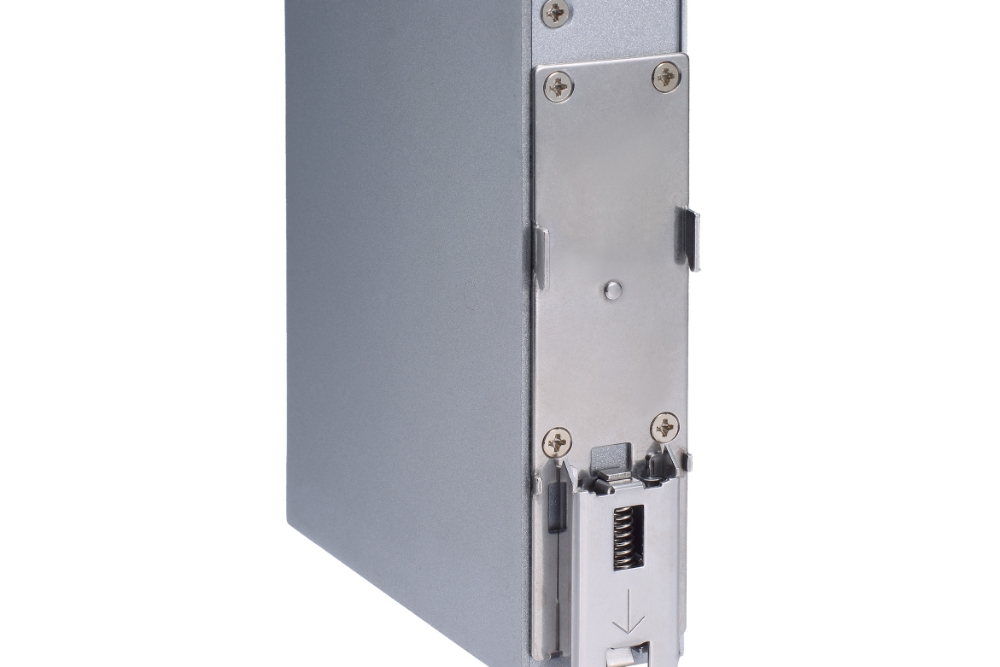

Mounting
  • Wall mount, DIN-rail
  • UST200-83H-FL-E3930-CANTVDC (P/N-E274200100)
  • Fanless embedded system with Intel® Atom® x5-E3930 processor, 1 CAN, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 reserved, and Smart Ignition
  • UST200-83H-FL-E3930-COMTVDC
  • Fanless embedded system with Intel® Atom® x5-E3930 processor, 1 COM, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 reserved, and Smart Ignition
  • 8812C300GA0E
  • G UC20GKit tBOX/ICO (20) (E)
  • 8812C300HA0E
  • 3G/GPS UC20GKit tBOX/ICO (20) (E)
  • 8812C1200A0E
  • AP12356 Wi-Fi kit for tBOX/ICO (E)
  • 8812C1201A0E
  • AP12356 WT Wi-Fi kit for tBOX/ICO (E)
  • 8816N8108A0E
  • LTE MC7430 (EU) kit for tBOX (E)
  • 8816N8104A0E
  • LTE MC7455 (US) kit for tBOX810 (E)
  • 8812C3008A0E
  • LTE SIM7100C (TW) with extent antenna for ICO300 (E)
  • 8812C300IA0E
  • LTE SIM7100JC kit for ICO (20) JPN SFP (E)
  • 8812C300EA0E
  • LTE SIMCOM SIM7100C (TW) for ICO300 SFP (E)
  • 8812C300DA0E
  • LTE SIMCOM SIM7100E (EU) for ICO300 SFP (E)
  • 50956A24040E
  • Adapter 12V36W FSP036-RHBN3 with wire type
