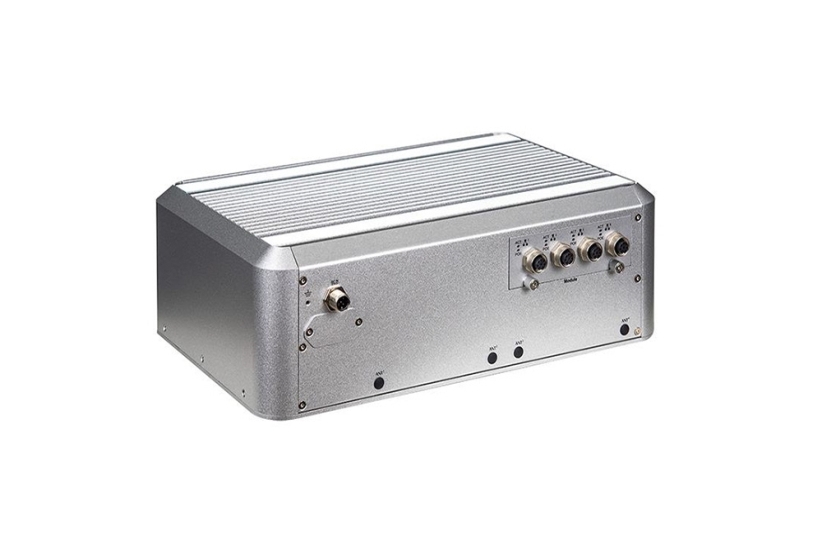

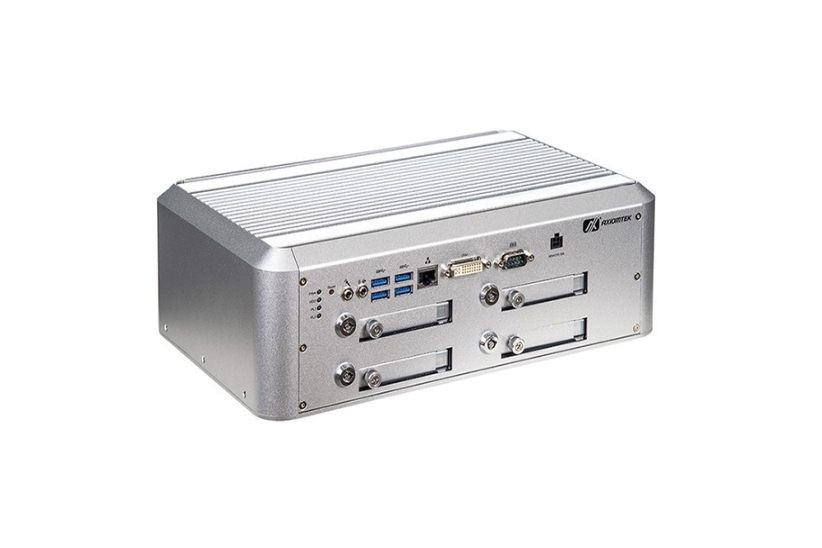

tBOX300-510-FL

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor for Vehicle, Railway and Marine PC

  • CE (Class A), FCC, EN 50155, EN 50121-3-2, EN 45545-2, and IEC 60945 certified; E-Mark, ISO 7637-2, and DNV 2.4 compliant
  • 7th gen Intel® Core™ & Celeron® processors (Kaby Lake)
  • Value-added module slot for 9 types of value-added modules (COM/LAN/DIO/PoE/CAN/BNC)
  • Supports Marvell Hardware RAID 0/1/10
  • External PoE PSU (optional), up to 120W power supply
  • Wide operating temperatures from -25°C to +70°C
  • Power Input:
    24 to 110 VDC for railway version
    12/24 VDC for vehicle version
    24 VDC for marine version
  • Intelligent solution of vehicle power management (ACC ignition)
  • 4 swappable 2.5" SATA drives

Datasheed (PDF)

CPU
  • Intel® Core™ i7-7600U 2C @ 2.8
  • Intel® Core™ i5-7300U 2C @ 2.6
  • Intel® Core™ i3-7100U 2C @ 2.4 GHz
  • Intel® Celeron® 3965U 2C @ 2.2GHz
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4 SO-DIMM slot, up to 32GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet/PoE
  • 1 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • 1 x DVI-I
CANbus
  • Available from I/O module (optional)
Digital I/O
  • Available from I/O module (optional)
Audio
  • 2 x Audio (Mic-in & Line-out)
Storage
  • 4 x swappable 2.5" SATA drive (9.5 mm height)
  • 1 x mSATA (use 1 PCI Express Mini Card slot)
Expansion
  • 3 x Full-size Mini PCI Express Card slot
  • 2 x SIM card slot
  • 1 x Value-added module slot
Others
  • 1 x M12 or terminal block DC-in (optional)
  • 1 x PoE power-in (Terminal block, optional)
  • 4 x Antenna opening
  • 1 x Remote switch
  • 1 x Reset bottom
Power Consumption
  • N/A
Power Supply
  • Railway version DC-input: 24 to 110 VDC (tolerance: 16.8 to 137.5 VDC)
  • Vehicle version DC-input: 12/24 VDC (tolerance: 9 to 36 VDC, w/ ACC ignition)
  • Marine version DC-input: 24 VDC (tolerance: 14 to 32 VDC)
  • PoE power output maximum 120W (*/**/***): 15.4W/8 ports (802.3af), 30W/4 ports (802.3at)
  • * To be used with PoE VAM (VAM701 & 703)
  • ** Different system version has different PSU.
  • *** 24V input Railway ver. is available (Marine by request)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -25°C to +70°C (-13°F to +158°F) with W.T. SSD
  • -25°C to +55°C (-13°F to +131°F) with W.T. HDD
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 3 Grms with SSD, 1 Grms with HDD (5 to 500Hz, X/Y/Z direction; random)
  • EN 61373 cat. 1 class B
  • IEC 60068-2-64
  • MIL-STD-810G, Method 514.6C, Procedure I, Category 4
Shock
  • Shock optioning, 50 Grms, Half-sine 11 ms duration (with SSD, according to IEC60068-2-27)
Dimensions
(W x D x H)
  • 321 x 210.2 x 105.33 mm (12.64" x 8.28" x 4.15")
  • 321 x 210.2 x 109.33 mm (12.64" x 8.28" x 4.30") (with wall mount)
Weight (net/gross)
  • 4.5 kg (9.92 lb)/6 kg (13.23 lb)
Certifications
  • CE (Class A), FCC, EN 50155, EN 50121-3-2, EN 45545-2, and IEC 60945 certified
  • E-Mark, ISO 7637-2, and DNV 2.4 compliant
EOS
  • Windows® 10 64-bit, Linux
Mounting
  • Wall mount
  • tBOX300-510-FL-Celeron/i3/i5/i7-24-110-MRDC
  • Fanless railway embedded system, Intel® Celeron® 3965U/Core™ i3-7100U/i5-7300U/i7-7600U processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, four 2.5" SATA trays, M12 A-code 5P DC-in, and 16.8 - 137.5 VDC
  • tBOX300-510-FL-Celeron/i3/i5/i7-TVDC (No supporting PoE/PoE+)
  • Fanless vehicle embedded system, Intel® Celeron® 3965U/Core™ i3-7100U/i5-7300U/ i7-7600U processor, 4 USB 3.0,DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, four 2.5" SATA trays, 9 - 36 VDC, TB 3P DC-in, and ACC ignition
  • tBOX300-510-FL-Celeron/i3/i5/i7-TMDC
  • Fanless marine embedded system, Intel® Celeron® 3965U/Core™ i3-7100U/i5-7300U/ i7-7600U processor, 4 USB 3.0, DVI-I, RJ-45 LAN, serial console, Mic-in/Line-out, four 2.5" SATA trays, TB 3P DC-in, and 14 - 32 VDC
  • VAM700 (P/N-E277700100)
  • 4 x M12 A-code GbE
  • VAM701 (PoE/PoE+) (P/N-E277701100)
  • 4 x M12 A-coded GbE with PoE
  • VAM702 (P/N-E277702100)
  • 4 x RJ45 A-code GbE
  • VAM703 (PoE/PoE+) (P/N-E277703100)
  • 4 x RJ45 A-code GbE with PoE
  • VAM100 (P/N-E277100100)
  • 4 x 4-wire isolated RS-232/422/485
  • VAM101 (P/N-E277101100)
  • 4 x isolated CANbus 2.0A/B
  • VAM200 (P/N-E277200100)
  • 8-in/8-out isolated DIO
  • VAM600 (P/N-E277600100)
  • 1 x PCI Express Mini Card Slot +1 x SIM Card Slot & 1 x PCI Express Mini Card Slot (USB only) + 1 x SIM Card Slot
  • VAM400 (P/N-E277400100)
  • 4 x Video& 1 x Audio-in +1 x PCI Express Mini Card Slot (USB only) + 1 x SIM Card slot
  • 2.5” SATA HDD/SSD
  • 128GB or above
  • mSATA
  • 64GB or above
  • DDR4 SO-DIMM
  • 4GB to 16GB
  • 3G/4G/GPS module
  • 826N3230140E, 82606200410E, 826N5000100E
  • Wi-Fi/Bluetooth module
  • 826N3230060E, 826N3230100E, 826N3230110E,826N3230120E
  • DC in cable
  • 594B8120B30E (M12, with ACC), 594B7100B00E (Wire, with ACC)
  • LAN cable
  • 594N3202730E (M12-A male 8P to RJ-45)
  • Remote switch cable
  • 594K3101020E
  • Value-added module (VAM)
  • VAM700, VAM701, VAM702, VAM703, VAM100, VAM101, VAM200, VAM600, VAM400
  • AC to DC adapter
  • 50906D24000E (24V/120W, wire), 50966224010E (24V 90W, M12 Acode 5P)
  • Power cord
  • 59903000000E (EU), 59906000010E (JP), 59902000000E (US), 59904000000E (UK)
  • Power supply unit (PSU)
  • E276120101 PSU120-259-RAILWAY PoE 120W DC/DC external PSU (EN 50155 compliance, 24V-in, 53V-out, available for tBOX500 24V railway version only)
    E276120102 PSU120-259-RAILWAY-48VDC PoE 120W DC/DC external PSU (EN 50155 compliance, 48V-in, 53V-out, available for tBOX500 48V railway version only)
    E276120103 PSU120-259-RAILWAY-96/110VDC PoE 120W DC/DC external PSU (EN 50155 compliance, 96/110V-in, 53V-out, available for tBOX500 96/110V railway version only)
