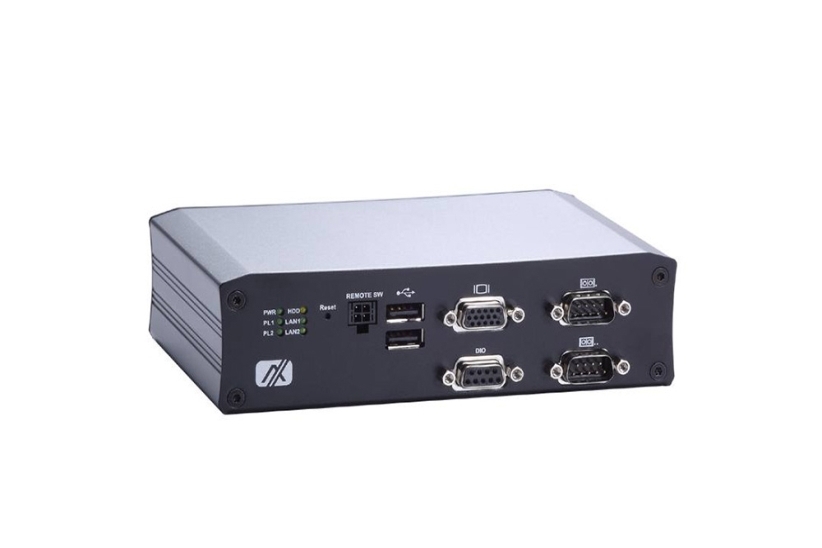

The tBOX810-838-FL fanless box PC is certified with eMark, ISO7637, EN50155, EN50121 and IEC60945 for transportation applications. The tBOX810-838-FL is powered by the Intel® Atom® processors E3845 quad-core 1.91GHz and E3827 dual-core 1.75 GHz with onboard DDR3L memory up to 4GB. Measuring only 164 x 108 x 44 mm and 0.77kg, the mini fanless embedded system supports a wide operating temperature ranging from -40°C to +70°C and 9 ~ 36V wide DC input for wide range of harsh environmental conditions. Additionally, the vehicle/railway/marine box PC has high integration ability with two full-size PCI Express Mini Card slots, one SIM card which makes it a multi-function device for transportation applications. The tBOX 810-838-FL is definitely the top choice for M2M intelligent system for railway, marine, and vehicle solutions.
| CPU |
- Intel® Atom® processor E3845 (4C@1.91GHz)
- Intel® Atom® processor E3827 (2C@1.75GHz)
|
| Chipset |
|
| System Memory |
- 4 GB DDR3L-1333 memory onboard
|
| BIOS |
|
| COM |
|
| USB |
|
| Ethernet/PoE |

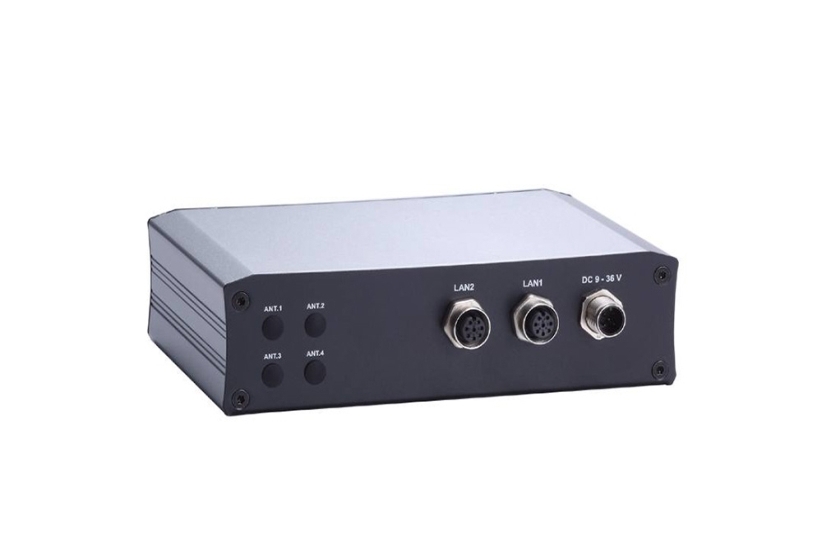

- Option #1: 2 x M12 A-coded GbE LAN

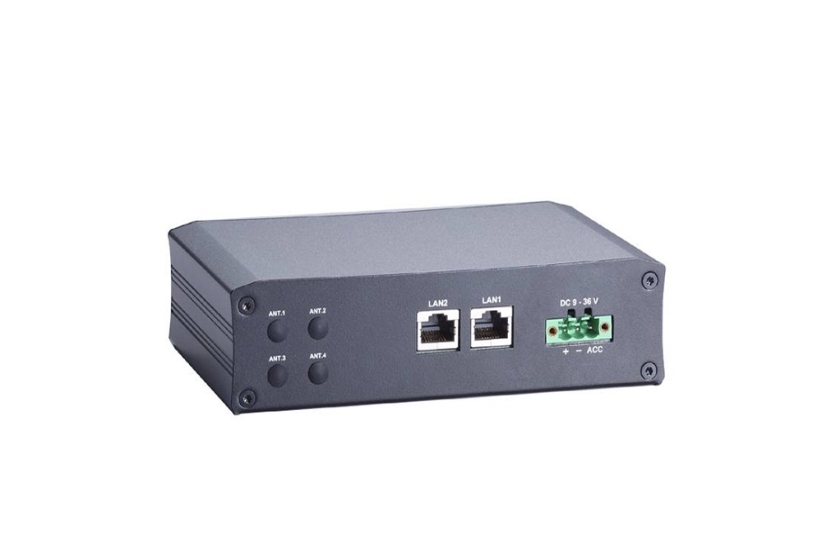

- Option #2: 2 x RJ-45 GbE LAN
|
| Display |
|
| CANbus |
|
| Digital I/O |
- 1 x DI/DO (8-bit programmable)
|
| Audio |
|
| Storage |
- 1 x 2.5” SATA drive (9.5 mm height)
- 1 x mSATA
|
| Expansion |
- 2 x Full-size PCI Express Mini Card slot
- 1 x SIM card socket
|
| Others |
|
| Power Supply |
- 9 to 36 VDC, typical: 12/24 VDC
- 14 to 32 VDC, typical: 24 VDC
|
| Power Consumption |
|
| Watchdog Timer |
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with W.T. SSD
- -25°C to +55°C (-13°F to +131°F) with W.T. HDD
|
| Relative Humidity |
- 5% to 95%, non-condensing
|
| Vibration |
- 3 Grms w/ SSD (5 to 500Hz, X, Y, Z direction; random)
- 1 Grms w/ HDD (5 to 500Hz, X, Y, Z direction; random)
|
| Shock |
- Comply EN 61373 section 10 table 3 category 1 class A and class B up to 5 Grms (30ms, ±X/Y/Z direction)
|
Dimensions
(W x D x H) |
- 163.8 x 108 x 44 mm (6.44" x 4.25” x 1.73”)
|
| Weight (net/gross) |
- 0.77 kg (1.69 lb)/1.25kg (2.76 lb)
|
| Certifications |
- CE (Class A), EN 50155, EN 50121, E-Mark, ISO 7637-2, IEC 60945, DNV 2.4 certified
|
| EOS |
- Windows® 10, WE8S, WES 7, Linux, VxWorks7
|
| Mounting |
|
- tBOX810-838-FL-E3827-RJ-DC (P/N-E26N810105)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 GbE LANs (RJ-45), phoenix DC-in, 2 USB, VGA, 2 COM, DIO with ACC power setting for vehicle only
- tBOX810-838-FL-E3827-M12-ACC-DC (P/N-E26N810102)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 GbE LANs (M12), M12 DC-in, 2 USB, VGA, 2 COM, DIO with ACC power setting for vehicle only
- tBOX810-838-FL-E3827-M12-RL-DC (P/N-E26N810107)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 GbE LANs (M12), M12 DC-in, 2 USB, VGA, 2 COM, DIO for railway and marine only
- tBOX810-838-FL-E3845-RJ-DC (P/N-E26N810104)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (RJ-45), phoenix DC-in, 2 USB, VGA, 2 COM, DIO with ACC power setting for vehicle only
- tBOX810-838-FL-E3845-RJ-AUDIO-DC (P/N-E26N810110)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (RJ-45), phoenix DC-in, 2 USB, VGA, 2 COM, DIO, audio with ACC power setting for vehicle only
- tBOX810-838-FL-E3845-M12-ACC-DC (P/N-E26N810100)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (M12), M12 DC-in, 2 USB, VGA, 2 COM, DIO with ACC power setting for Vehicle only
- tBOX810-838-FL-E3845-M12-RL-DC (P/N-E26N810106)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (M12), M12 DC-in, 2 USB, VGA, 2 COM, DIO for railway and marine only
- tBOX810-838-FL-E3845-M12-AUDIO-DC (P/N-E26N810109)
- Fanless vehicle/railway/marine embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (M12), M12 DC-in, 2 USB, VGA, 2 COM, DIO audio for railway and marine only
- tBOX810-838-FL-E3845-RJ-Marine-DC (P/N-E26N810114)
- Fanless marine grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 GbE LANs (RJ-45), M12 DC-in, 2 USB, VGA, 2 COM, DIO audio for marine only
- tBOX810-838-FL-E3827-RJ-Marine-DC (P/N-E26N810115)
- Fanless marine grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 GbE LANs (RJ-45), M12 DC-in, 2 USB, VGA, 2 COM, DIO audio for marine only
- 2.5” SATA HDD/SSD
- 16GB or above
- mSATA
- 16GB or above
- 3G/4G/GPS module
- 826N3230130E, 826N3230140E, 826N8101040E, 826N8101030E, 826N8101020E
- Wi-Fi/Bluetooth module
- 826K6231010E, 826K3101060E, 826N3230110E, 826N3230100E, 826N3230120E
- DC in cable
- 594B8120B30E (M12-wire, w/o ACC), 594B7100B00E (M12-wire, w/ ACC)
- LAN cable
- 594N3202730E (M12-A male 8P to RJ-45)
- Remote switch cable
- 594K3101020E
- AC to DC adapter
- 50957245000E (24V/90W, WIRE), 50906D24000E
- Audio module
- 59903000000E (EU), 59906000010E (JP), 59902000000E (US), 59904000000E (UK)
- Power cord
- E392903100 (AX92903)
- CANbus module
- E392905100 (AX92905)
