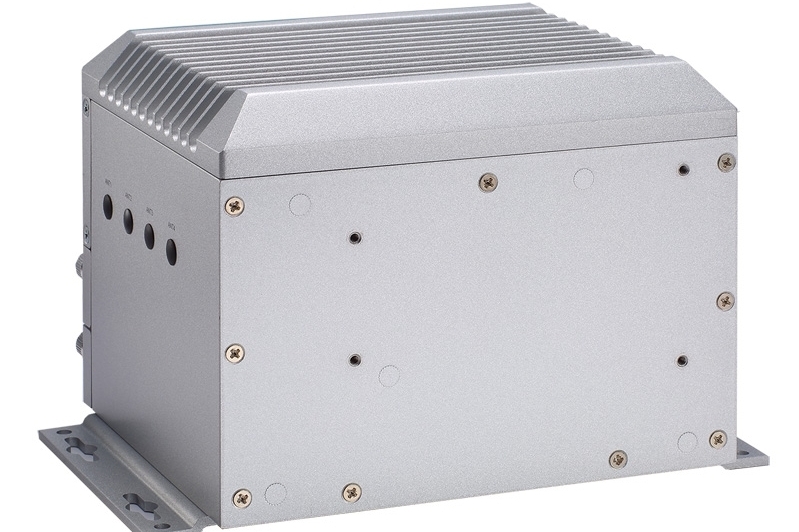

tBOX510-518-FL

Compact Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor for Railway PC

Features

  • CE, LVD, FCC, and EN 50155 certified and EN 50124 compliant
  • 7th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Kaby Lake)
  • Fanless and wide operating temperatures from -40°C to +70°C
  • Compact size with 1 PIM (Plug-in I/O Module) slot for various I/O requirements
  • 24 to 110 VDC wide range power input for railway applications
  • Single-sided I/O design for easy maintenance
  • OVP, UVP, OCP, RPP power protection design

Datasheed (PDF)

Introduction



Axiomtek's tBOX510-518-FL is certified with EN 50155 and is in compliance with EN 50124 for railway-related applications. The railway box PC is powered by the Intel® Core™ processor or Intel® Celeron® processor 3965U. It comes with multi-functional expansion slots, modular design and a single-sided I/O design. Its compact structure ensures easy installation in limited space. It is built to withstand harsh operating environments with a wide operating temperature range of -40°C to +70°C and vibration endurance for up to 3Grms. Thanks to overcurrent, overvoltage, under-voltage and reverse polarity protection as well as 24V to 110V DC wide voltage input support, the tBOX510-518-FL is suitable for railway applications with varying voltage input requirements. It has a plug-in I/O module slot to meet different customization requirements.

CPU
  • Intel® Core™ i7-7600U 2C@2.8 GHz, TDP: 15W
  • Intel® Core™ i5-7300U 2C@2.6 GHz, TDP: 15W
  • Intel® Core™ i3-7100U 2C@2.4 GHz, TDP: 15W
  • Intel® Celeron® 3965U 2C@2.2 GHz, TDP: 15W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
USB
  • 1 x M12 A-code USB 2.0 (with 2 x USB 2.0)
  • 4 x USB 3.0
PoE
  • N/A
Ethernet
  • 2 x RJ-45 10/100/1000 Mbps (Intel® i210-IT)
Display
  • 1 x HDMI 4K x 2K @24Hz
  • 1 x VGA (up to 1920 x 1200 @60Hz)
CANbus
  • N/A
Digital I/O
  • 1 x Terminal block isolated DIO 4-in/4-out (isolation voltage: 2 kV)
Audio
  • N/A
Storage
  • 1 x Swappable 2.5" SATA drive (9.5 mm height)
  • 1 x CFast™
Expansion
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe)
  • 1 x PIM (Plug-in I/O Module) slot
  • 1 x External SIM card slot
Others
  • TPM 2.0
  • 1 x Reset button
  • 4 x Antenna opening
Power Supply
  • 1 x M12, 24 to 110 VDC (S2 optional)
Power Consumption
  • 24-110V@2.9-0.55A (with PIM901T)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD & wall mount (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ SSD & DIN-rail (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant (for wall mount)
  • EN 50155 EN 61373 category 1 class B
Shock
  • EN 50155 EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions
(W x D x H)
  • 119.8 x 124.8 x 155 mm (4.72" x 4.91" x 6.1")
Weight (net/gross)
  • TBD
Certifications
  • CE, LVD, FCC, and EN 50155 certified
  • EN 50124 compliant
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • AMS.AXView
Mounting
  • Wall mount & DIN-rail (optional)
  • tBOX510-518-FL-i7-24-110MRDC (P/N-E26N510104)
  • Fanless railway embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, 1 M12 A-coded USB 2.0, HDMI, VGA, LAN, serial console or RS-232/422/485, DIO, 2.5" SATA tray, M12 A-code DC-in, and 24 to 110 VDC
  • tBOX510-518-FL-Cel-24-110MRDC (P/N-E26N510101)
  • Fanless railway embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, 1 M12 A-coded USB 2.0, HDMI, VGA, LAN, serial console or RS-232/422/485, DIO, 2.5" SATA tray, M12 A-code DC-in, and 24 to 110 VDC
  • PIM901T
  • 2 x Isolated RS-232/422/485 COM (Isolation voltage
  • Anti-vibration Kit (P/N-8816N100030E)
  • For in-vehicle/rolling stock applicable systems to improve HDD/SSD stability
  • DIN-Rail Kit (P/N-8816N510010E)
  • DIN-Rail Kit for tBOX510-518
  • 8812C300GA0E
  • 3G UC20GKit tBOX/ICO(20) (E)
  • 8812C300HA0E
  • 3G/GPS UC20GKit tBOX/ICO(20) (E)
  • 8812C300BA0E
  • AP12356 WiFi Kit for ICO300 series SFP (E)
  • 8812C300CA0E
  • AP12356WT Wi-Fi Kit for ICO300 SFP (E)
  • 8812C5002A0E
  • LTE SIM7100C (TW) kit for ICO(20) SFP (E)
  • 8812C5001A0E
  • LTE SIM7100E (EU) kit ICO(20) SFP (E)
  • 8812C300IA0E
  • LTE SIM7100JC kit for ICO(20) JPN SFP (E)
  • 50966224010E
  • Adapter 24V 90W, M12 A-code 5P FSP090AAAN3
