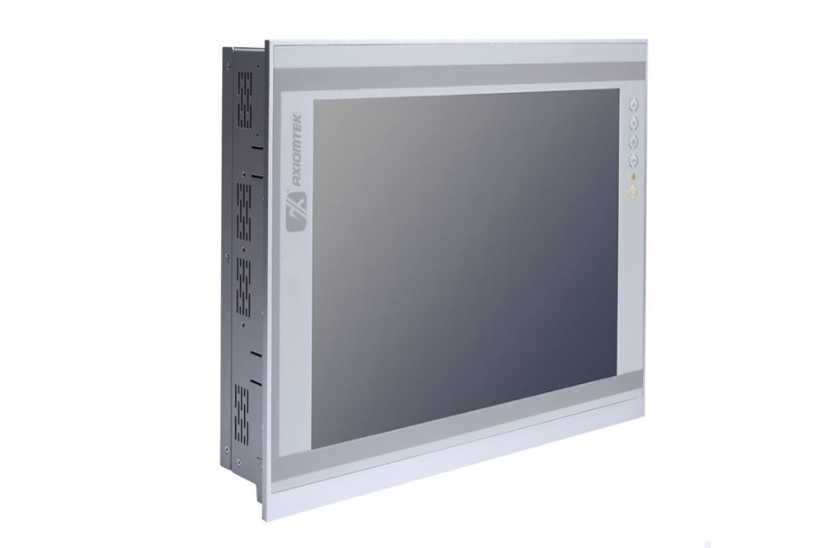

P1157S-881

15" XGA TFT Slim Industrial Touch Panel Computer with 4th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor

  • 15" XGA TFT LCD display
  • LGA1150 socket 4th gen Intel® Core™ i7/i5/i3 Celeron® & Pentium® processor (Broadwell/Haswell)
  • Intel® H81 chipset
  • Less screw design for easy installation
  • 2 USB 3.0, 4 USB 2.0 and 4 COM ports
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust aluminum with IP65 compliant front bezel design
  • The best C/P ratio for HMI solution

Datasheed (PDF)

The P1157S-881, a state-of-the-art desktop touch panel computer with options of 5th/4th generation Intel® Core™, Celeron® or Pentium® Processors. This rugged touch panel PC with a 15-inch XGA TFT LCD has IP65/NEMA 4 compliant front panel and aluminum housing. The P1157S-881 is ideally suited for automation and factory applications, including production line monitoring, quality control, intelligent automation, IoT-related and manufacturing operational control. This highly integrated panel PC is designed with ease of customization in mind and focus on reducing time-to-market for systems integrators.

LCD Panel
  • 15" XGA TFT LCD
  • 250 nits
  • 1024 x 768 pixels
CPU
  • LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
Chipset
  • Intel® H81
System Memory
  • 2 x 204-pin SO-DIMM DDR3-1333/1600, up to 16GB
BIOS
  • AMI

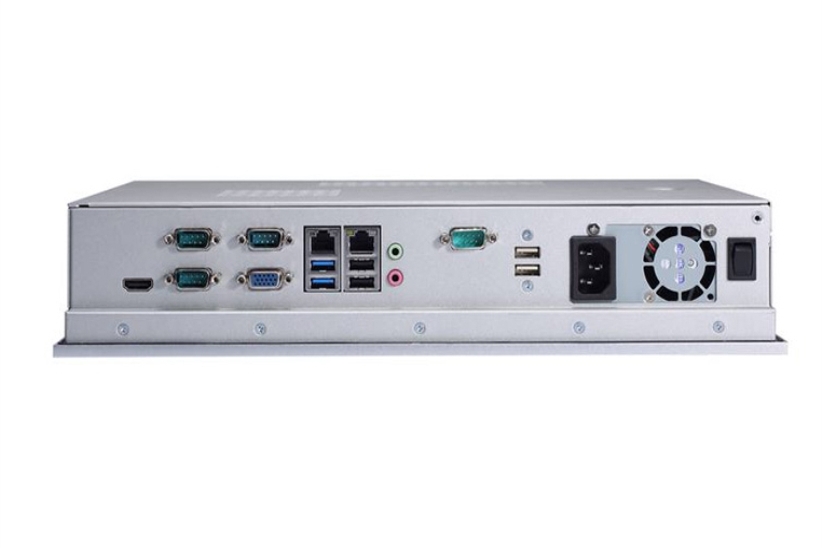

COM
  • 3 x RS-232/422/485 with 5V & 12V
  • 1 x RS-232 with 5V & 12V
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i217-V & i210-AT)
Display
  • 1 x VGA
  • 1 x HDMI
Audio
  • 1 x Audio (Mic-in/Line-out)
Storage
  • 1 x 3.5" or 2 x 2.5" SATA HDD (7-9.5 mm height)
Expansion
  • N/A
Others
  • Built-in speakers
  • Optional Wi-Fi 802.11 b/g/n module
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum with IP65/NEMA 4 rugged protection
Power Supply
  • 100 ~ 240 VAC, 200 W
Power Comsumption
  • 142 W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Relative Humidity
  • 10% - 90% @ 40°C, non-considering
Vibration
  • 1.0G, 5 - 500Hz, random
Dimensions
(W x D x H)
  • 378 x 72.2 x 309 mm (14.88" x 2.84" x 12.17")
Weight (net/gross)
  • 5.4 kg (11.88 lb)/ 7.8 kg (17.16 lb)
Certifications
  • CE
EOS
  • Windows® 7/8.1, Windows® Embedded 7/8
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • P1157S-881
  • 15" XGA slim industrial touch panel computer with LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 100 to 240 VAC
  • WiFi kit
  • 82211570050E
  • VESA & wall mount kit
  • 82211570060E
  • Rackmount kit
  • 72211571000E
  • 2 x 2.5" HDD bracket
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E226171119
  • PPC S1702B black stand (S)
  • Power cord (EU/US/UK/JP)
