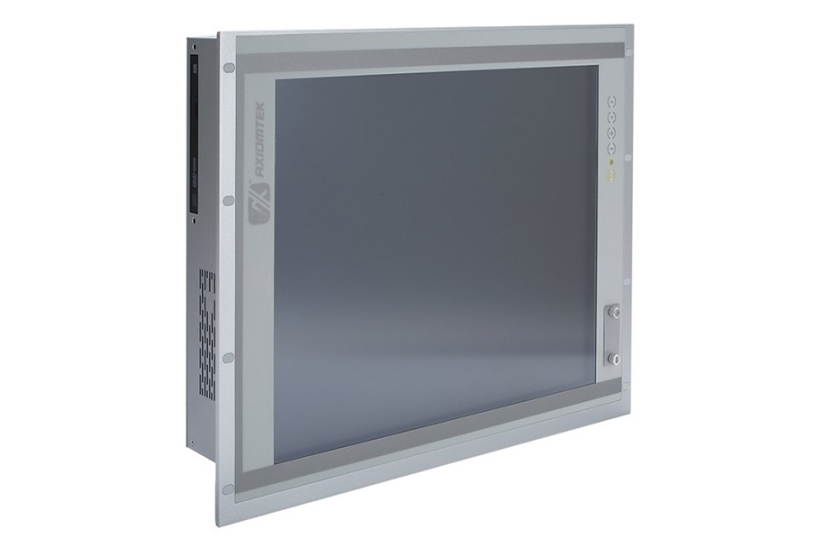

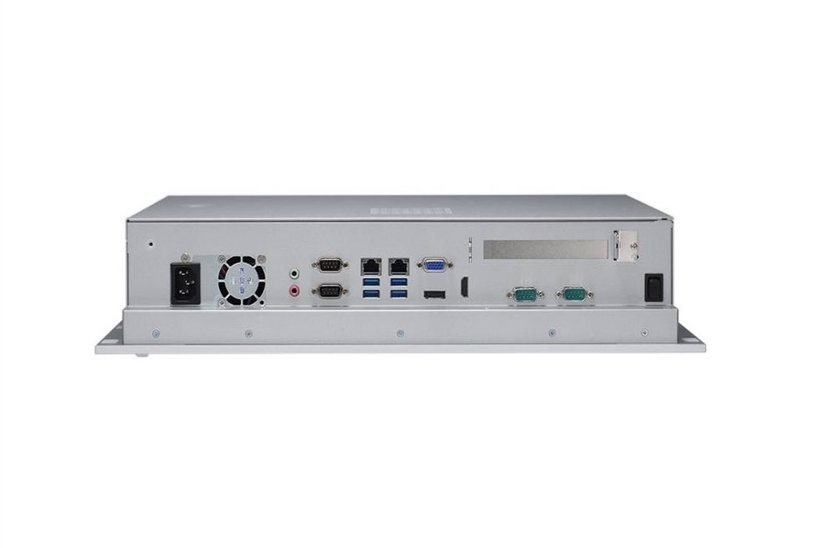

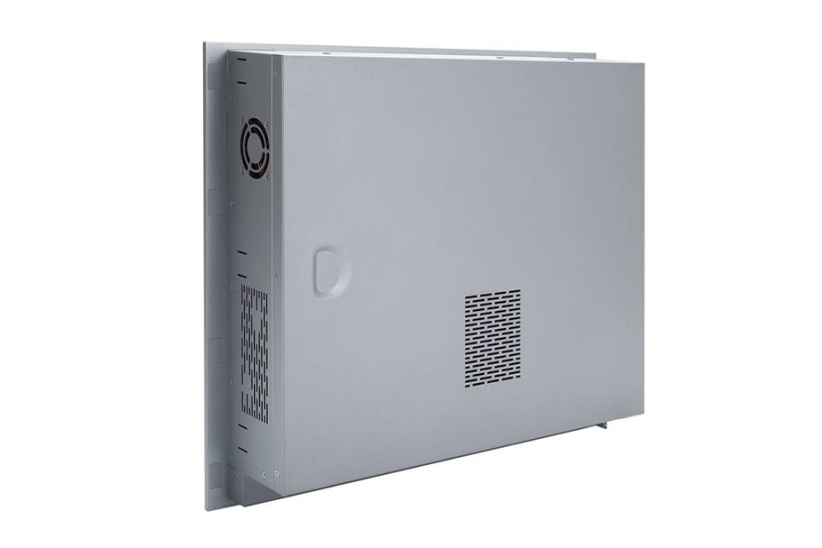

P1197E-500

19" SXGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3,Celeron® & Pentium® Proce

  • 19" SXGA TFT LCD display
  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
  • Intel® H110 chipset
  • Less screw design for easy installation
  • 4 USB 3.0, 2 USB 2.0 and 4 COM
  • One PCIe x4 or one PCIe expansion slots
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust aluminum with IP65 compliant front bezel design

Datasheed (PDF)

The P1197E-500 is a 19-inch touch panel computer with industrial-grade mechanism design and flexible expansion interface. The P1197E-500 adopts a 19" SXGA TFT LCD display with 250 nits brightness. The robust 5-wire resistive touchscreen panel PC is powered by the 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processors in an LGA1151 socket with the Intel® H110 chipset. It features built-in speakers for use in multimedia kiosk applications. The industrial touch panel system also offers an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.

LCD Panel
  • 19" SXGA TFT LCD
  • 250 nits
  • 1280 x 1024 pixels
CPU
  • LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
Chipset
  • Intel® H110
System Memory
  • 2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
BIOS
  • AMI
COM
  • 3 x RS-232
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i219-LM/i211-AT)
Display
  • 1 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Audio
  • 1 x Audio (Mic-in & Line-out)
Storage
  • 1 x 3.5” SATA HDD or 2.5” SATA HDD (9.5 mm height)
Expansion
  • 1 x PCIe x4 or 1 x PCI
Others
  • 1 x built-in slim DVD-RW (optional)
  • 1 x PS/2 Keyboard & mouse combo
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum with IP65/NEMA 4 rugged protection
Power Supply
  • 100 to 240 VAC, 200W
Power Comsumption
  • 157 W
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Relative Humidity
  • 10% to 90% @ +40°C, non-considering
Vibration
  • 1.0G, 5 - 500Hz, random
Dimensions
(W x D x H)
  • 482 x 94.7 x 380.8mm (18.98" x 3.73" x 14.99")
Weight (net/gross)
  • 8 kg (17.64 lb)/ 10.4 kg (22.93 lb)
Certifications
  • CE
EOS
  • Windows® 10, Windows® 10 IoT Enterprise
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • P1197E-500 with PCIe
  • 19" SXGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen, PCIe x4 slot and 100 to 240 VAC
  • P1197E-500 with PCI
  • 19" SXGA expandable industrial touch panel computer with LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen, PCI slot and 100 to 240 VAC
  • Wi-Fi kit
  • 82211970070E
  • VESA & wall mount kit
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E221177116
  • PPC HA741L black stand (L)
