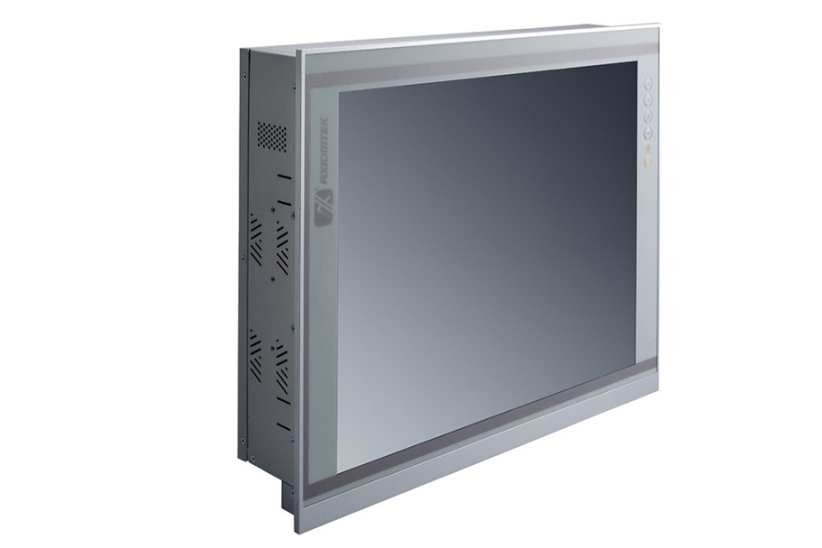

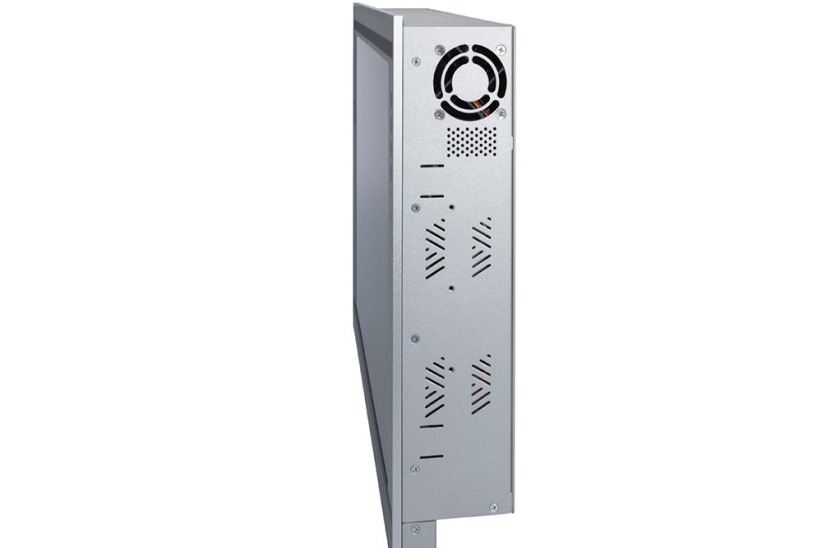

P1157S-871

15" XGA TFT Slim Industrial Touch Panel Computer with 3rd Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor

  • 15" XGA TFT LCD display
  • LGA1155 socket 3rd gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
  • Intel® Q77 chipset
  • Less screw design for easy installation
  • 4 USB 3.0, 2 USB 2.0 and 4 COM ports
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust aluminum with IP65 compliant front bezel design

Datasheed (PDF)

The P1157S-871 is a rugged industrial-grade touch panel computer with 15-inch XGA TFT LCD display, dual view support and superiorly easy maintenance design. This highly integrated and easy-to-use Pnel PC supports the new 3rd Generation Intel® Core™ i7/ i5/ i3/ Pentium®/ Celeron® processors (Ivy Bridge) in LGA1155 socket with Intel® Q77 Express chipset. It not only has a new fashionable mechanism design, also offers protection with aluminum housing and IP65/NEMA 4 sealing. Especially, the unique user-friendly design with only 3 screws on its back chassis enables users to quickly remove it and maintain & install with ease. With these incredible capabilities and features, the P1157S-871 is excellent for factory automation, kiosk, and more industrial applications.

LCD Panel
  • 15" XGA TFT LCD
  • 350 nits
  • 1024 x 768 pixels
CPU
  • LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset
  • Intel® Q77
System Memory
  • 2 x 204-pin SO-DIMM DDR3-1333/1600, up to 16 GB
BIOS
  • AMI

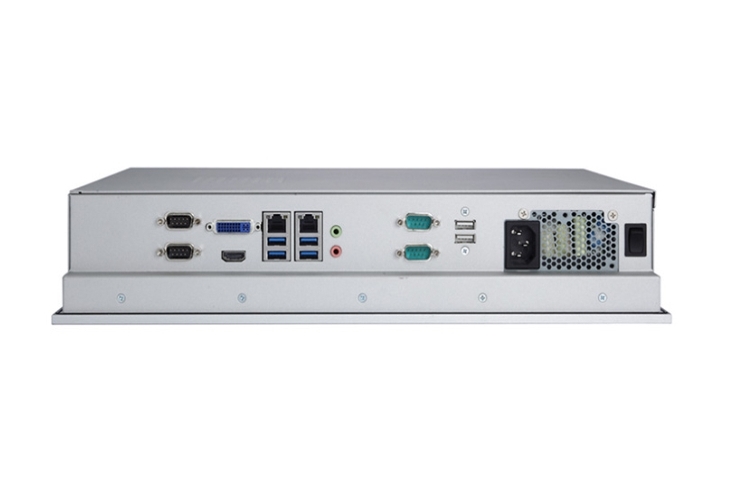

COM
  • 2 x RS-232
  • 1 x RS-232/422/485 with 5V & 12V
  • 1 x RS-232 with 5V & 12V
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® 82579LM/82583V)
Display
  • 1 x DVI-I
  • 1 x HDMI
Audio
  • Mic-in/Line-out
Storage
  • 1 x 3.5" or 2 x 2.5" SATA HDD (7-9.5 mm height)
Expansion
  • N/A
Others
  • Built-in speakers
  • Optional Wi-Fi 802.11 b/g/n module
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • 100 ~ 240 VAC, 270 W
Power Comsumption
  • 165 W
Watchdog Timer
  • 255 levels, 1~255 sec.
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F)
Relative Humidity
  • 10 ~ 90% @ 40°C, non-considering
Vibration
  • 1.0G, 5 ~ 500Hz, random
Dimensions
(W x D x H)
  • 378 x 72.2 x 309 mm (14.88" x 2.84" x 12.17")
Weight (net/gross)
  • 5.2 kg (11.46 lb)/ 7.5 kg (16.53 lb)
Certifications
  • CE
EOS
  • Windows® XP/XPe, Windows® 7/8.1, Windows® Embedded 7/8
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • P1157S-871
  • 15" XGA slim industrial touch panel computer with LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 100~240 VAC
  • 82211271000E
  • Wireless LAN kit
  • 82211570050E
  • VESA & wall mount kit
  • 82211570060E
  • Rack mount kit
  • 72211571000E
  • 2 x 2.5" HDD bracket
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E226171119
  • PPC S1702B black stand (S)
  • Power cord (EU/US/UK/JP)
