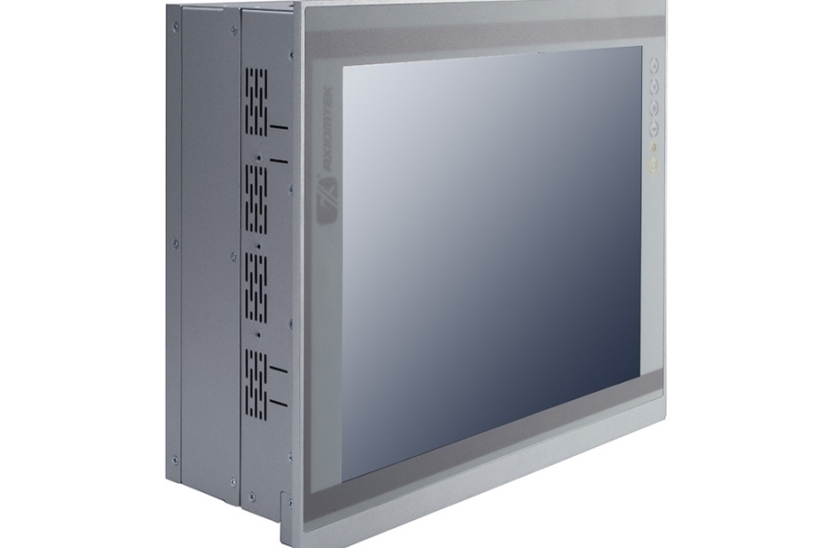

P1157E-871

15" XGA TFT Expandable Industrial Touch Panel Computer with 3rd Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor

  • 15" XGA TFT LCD display
  • LGA1155 socket 3rd gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
  • Intel® C216 chipset
  • Less screw design for easy installation
  • 4 USB 3.0, 2 USB 2.0 and 4 COM ports
  • Two PCIe or two PCI expansion slots
  • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
  • Robust aluminum with IP65 compliant front bezel design

Datasheed (PDF)

The P1157E-871 panel PC support the high performance 3rd Generation Intel® Core™ i7, i5 and i3 processors in LGA1155 socket with the Intel® C216 chipset. The P1157E-871 has reserved two PCIe or two PCI slots to fulfill different application needs. Built around user-convenience, this all-in-one superior touch panel computer provides a screw-less chassis design. To withstand harsh operating environments, it provides protection with aluminum housing and IP65/NEMA 4 sealing and offers reliable performance and quality. With the new Intel® HD 4000 graphics engine, the P1157E-871 can easily handle the demands of intensive graphical interfaces or 3D graphics. The user-friendly touch panel PC is best suited for factory automation, kiosk, and more industrial fields.

LCD Panel
  • 15" XGA TFT LCD
  • 350 nits
  • 1024 x 768 pixels
CPU
  • LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
Chipset
  • Intel® C216
System Memory
  • 2 x 204-pin SO-DIMM DDR3-1333/1600, up to 16 GB
BIOS
  • AMI
COM
  • 2 x RS-232
  • 1 x RS-232/422/485 with 5V & 12V
  • 1 x RS-232 with 5V & 12V
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® 82579LM/82583V)
Display
  • 1 x DVI-I
  • 1 x HDMI
Audio
  • Mic-in/Line-out
Storage
  • 1 x 3.5" or 2 x 2.5" SATA HDD (7-9.5 mm height)
Expansion
  • 2 x PCIe x8 or 2 x PCI
Others
  • 1 x builtin slim DVD-RW (optional)
  • Built-in speakers
  • Optional Wi-Fi 802.11 b/g/n module
Touchscreen
  • 5-wire resistive type
Front Bezel
  • Aluminum with IP65/NEMA 4 rugged protection
Power Supply
  • 100 ~ 240VAC, 270 W
Power Comsumption
  • 167 W
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F)
Relative Humidity
  • 10% ~ 90% @ 40°C, non-considering
Vibration
  • 1.0 G, 5 ~ 500Hz, random
Dimensions
(W x D x H)
  • 378 x 125.5 x 309 mm (14.88" x 4.94" x 12.17")
Weight (net/gross)
  • 6.2 kg (13.67 lb)/ 9.6 kg (21.16 lb)
Certifications
  • CE
EOS
  • Windows® XP/XPe, Windows® 7/8.1, Windows® Embedded 7/8
Mounting
  • VESA mount
  • Wall mount
  • Rack mount
  • P1157E-871 w/ PCIe
  • 15" XGA expandable industrial touch panel computer with LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen, 2 PCIe x8 slots and 100~240 VAC
  • P1157E-871 w/ PCI
  • 15" XGA expandable industrial touch panel computer with LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3, Xeon®, Pentium® & Celeron® processor, resistive touch screen, 2 PCI slots and 100~240 VAC
  • 82211271000E Wireless LAN kit
  • 8211570100E
  • VESA & wall mount kit
  • 8211570060E
  • Rack mount kit
  • 72211571000E
  • 2 x 2.5" HDD bracket
  • 82211570070E
  • P1157E-871 DVD-RW kit
  • E981604011
  • ATC10 (VESA arm clamp type)
  • E981604012
  • ATW10 (VESA arm wall mount)
  • E226171119
  • PPC S1702B black stand (S)
  • Power cord (EU/US/UK/JP)
