GOT712S-837

LCD Panel	12.1" XGA TFT LCD 800 nits 1024 x 768 pixels
CPU	Intel® Atom™ processor E3845 1.91 GHz (Bay Trail)
Chipset	SoC integrated
System Memory	DDR3L 4GB onboard
BIOS	AMI

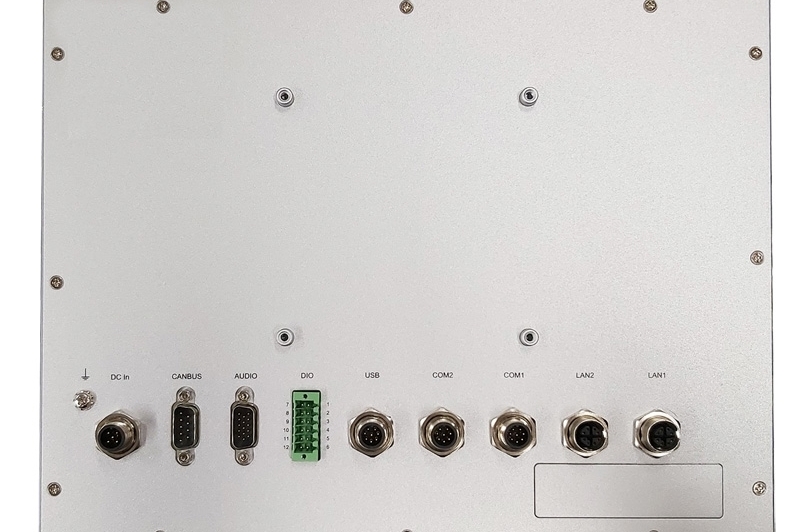

COM	2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB	1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet	2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
Display	N/A
Audio	1 x DB15 audio (line-in/mic-in/speaker-out/line-out)
Storage	16GB flash onboard 1 x mSATA
Expansion	2 x PCI Express Mini Card slot
Others	1 x M12 A-coded DC-in 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV) 1 x Isolated DB9 CANbus (isolation level 1.5kV)
Touchscreen	Alternative 5-wire resistive touchscreen or keyboard
Front Bezel	IP65, NEMA 4 rugged protection, aluminum front bezel
Power Supply	Typical 24 to 110 VDC, working range 16.8 to 137.5 VDC, EN 50155 S3 20ms power interruption protection
Power Comsumption	24-110Vdc@1.7-0.32A
Watchdog Timer	255 levels, 1 to 255 seconds
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95% @ +40°C, non-condensing
Vibration	N/A
Dimensions (W x D x H)	330 x 61.5 x 245mm (13" x 2.42" x 9.65")
Weight (net/gross)	2.95 kg (6.50 lb)/5.35 kg (11.79 lb)
Certifications	CE, EN 50155, EN 50121-3-2, EN 61373, EN 45545-2
EOS	Windows® 10, Windows® 10 (IoT), Windows® 8/8.1, WE8S, Windows® 7, WES 7
Mounting	Suspension mount VESA mount

GOT712S-837-R-E3845-24-110VDC (P/N-E22B712102)

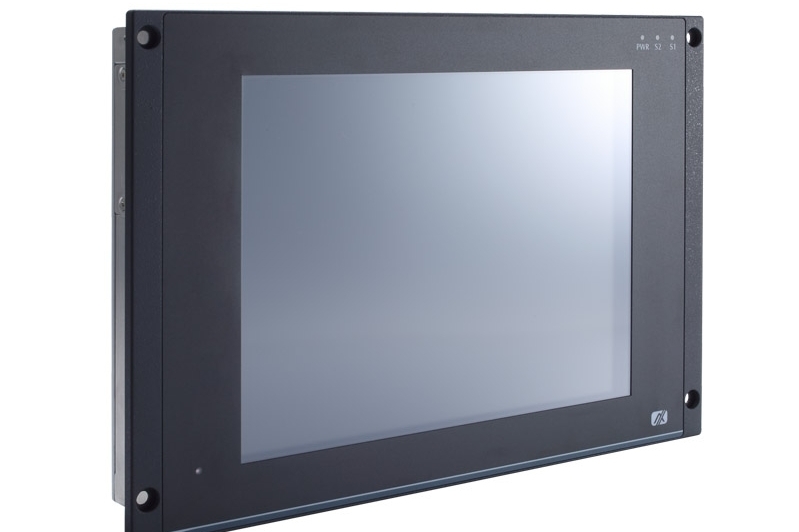

12" XGA railway fanless touch panel computer with Intel® Atom™ E3845, sunlight-readable LCD (800 nits), 5-wire
resistive touchscreen and 24 to 110 VDC power input, S3 20ms power interruption protection
822B7100140E
GOT712 3G+GPS kit
8812B7100A0E
GOT712 Wi-Fi kit
594B8122820E
M12 A-coded USB cable
594B7102100E
RS-232 cable
594B7102700E
M12 X-coded LAN cable
594B7100B00E
M12 DC-in power cable with ACC signal, length 1.8M
