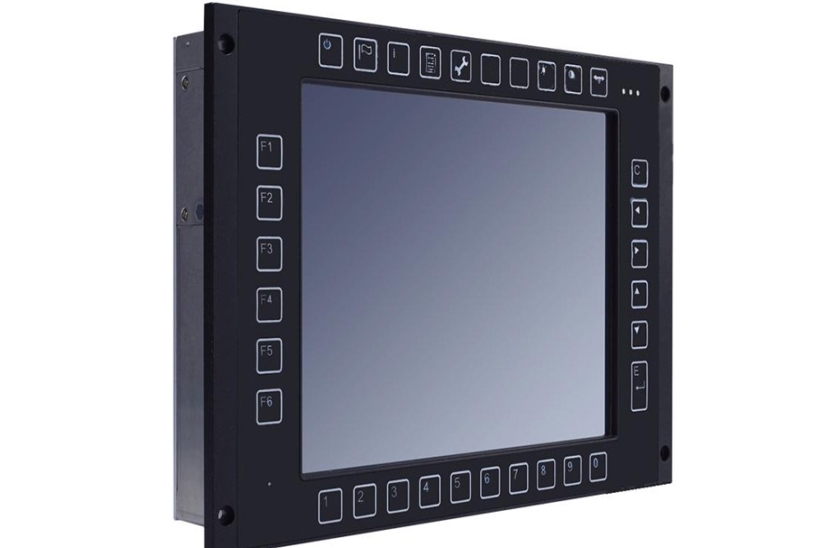

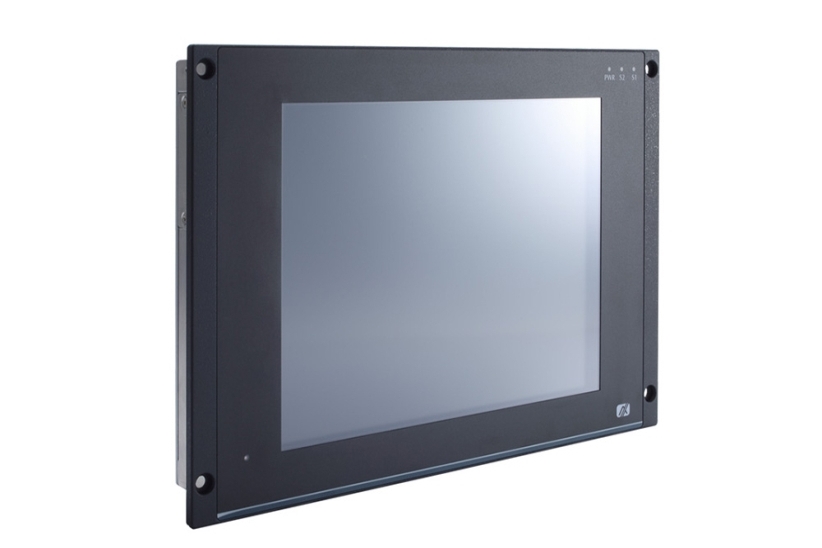

The GOT710-837 is equipped with a 10.4-inch SVGA TFT LCD display with high brightness LED backlight (1000 nits), which can allow a train operator to easily read any operational status messages, even under direct sunlight. Design for ease of use and maintenance, this all-in-one industrial touch panel PC also has an alternative keypad control on the front panel for easy access and cleaning purposes. This feature-rich panel PC has IP65 rated M12-type connectors and is EN50155 certified. The electronics inside the panel PC are well protected from harsh operating conditions and can withstand high vibrations, dust, spillage and high level of humidity. The GOT710-837 is particularly suitable for demanding HMI applications in the railway sector, including tasks like monitoring and controlling train functions such as speed, temperature, and security, or for fleet management.
LCD Panel |
- 10.4" SVGA TFT LCD
- 1000 nits
- 800 x 600 pixels
|
CPU |
- Intel® Atom™ processor E3845 1.91 GHz
|
Chipset |
|
System Memory |
- DDR3 4 GB (default) or 8 GB memory onboard
|
BIOS |
|
COM |

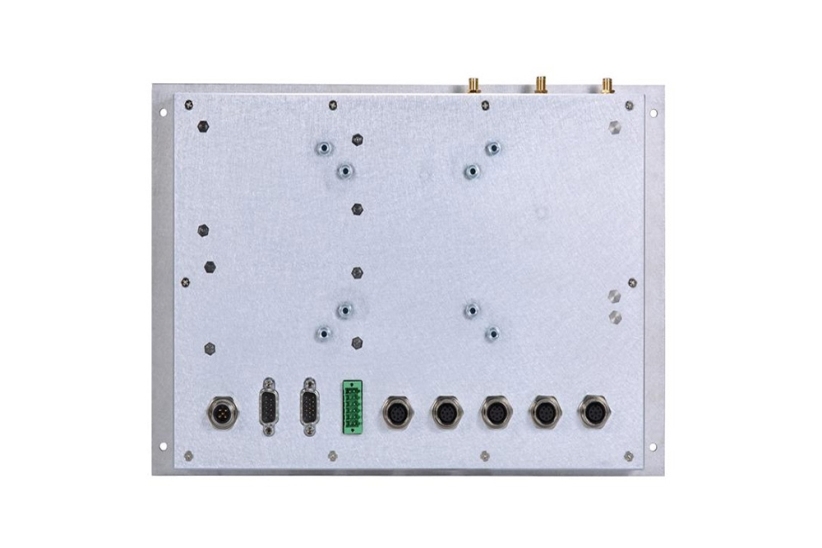

- 2 x RS-232/422/485 with isolation 1.5KV (M12, A-coded)
|
USB |
- 2 x USB 2.0 (M12, A-coded)
|
Ethernet |
- 2 x isolated 10/100/1000 Mbps with isolation 1.5KV (M12, X-coded)
|
Display |
|
Audio |
- 1 x Audio (Line-out & Mic-in), Speaker (D-sub)
|
Storage |
- 16GB flash onboard
- 1 x mSATA
|
Expansion |
- 2 x PCI Express Mini Card slot
|
Others |
- 1 x DC power input with isolation 1.5KV (M12, A-coded)
- 1 x DIO (6-in/2-out) with isolation 1.5KV (phoenix type)
- 1 x CANbus with isolation 1.5KV (D-sub)
|
Touchscreen |
- 5-wire resistive touch panel
|
Front Bezel |
- IP65, NEMA 4 rugged protection, aluminum front bezel
|
Power Supply |
- 16.8V to 30 VDC or 77V to 137.5 VDC
- 10ms hold up time (S2)
|
Power Comsumption |
|
Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
Operating Temperature |
- -25°C to +70°C (-13°F to +158°F)
|
Relative Humidity |
- 10% ~ 95% @ 40°C, non-condensing
|
Vibration |
|
Dimensions (W x D x H) |
- 310 x 65.05 x 216 mm (12.20" x 2.56" x 8.50")
|
Weight (net/gross) |
- 2.4 kg (5.29 lb) / 5 kg (11.02 lb)
|
Certifications |
- EN 50155, EN 50121-3-2 EMC, EN 61373 (shock/vibration), EN 45545 (fire) certified
- Compliance with UIC 612-01 (keypad)
|
EOS |
- Windows® 10, Windows® 8/8.1, WE8S, Windows® 7, WES 7
|
Mounting |
- Suspension mount
- VESA mount
|
- GOT710-837-R-E3845-24 VDC
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000nits), 5-wire resistive touch screen and 24 VDC power input
- GOT710-837-R-E3845-24 VDC with keypad
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen, 24 VDC power input and keypad
- GOT710-837-G-E3845-24 VDC with keypad
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000 nits), non-touch screen, 24 VDC power input and keypad
- GOT710-837-R-E3845-110 VDC
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen and 110 VDC power input
- GOT710-837-R-E3845-110 VDC with keypad
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000 nits), 5-wire resistive touch screen, 110 VDC power input and keypad
- GOT710-837-G-E3845-110 VDC with keypad
- 10.4" SVGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (1000 nits), non-touch screen, 110 VDC power input and keypad
- 822B7100140E
- GOT710 3G+GPS kit
- 8812B7100A0E
- GOT710 Wi-Fi Kit
- 594B8122820E
- M12 A-coded USB cable
- 594B7102100E
- RS-232 cable
- 594B7102700E
- M12 X-coded LAN cable
