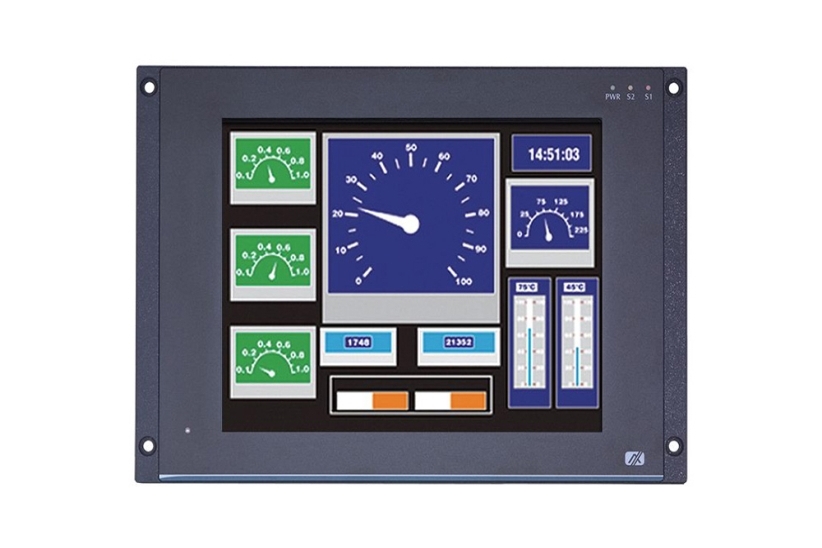

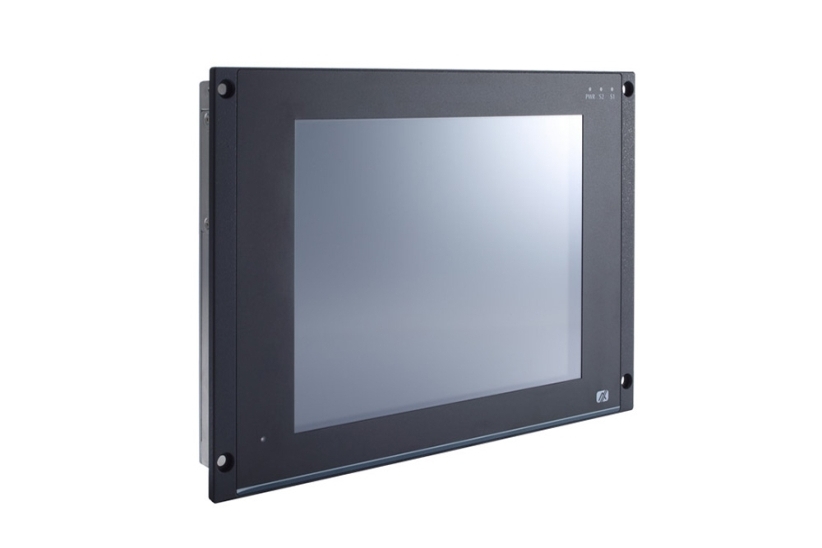

GOT712-837

12.1" XGA TFT EN 50155 Railway Fanless Touch Panel PC with Intel® Atom® Processor E3845 1.91 GHz (-25°C to +70°C )

  • Sunlight readable 12.1" XGA LCD with a high brightness of 800 nits
  • Fanless with Intel® Atom® processor E3845 1.91 GHz
  • All lockable connectors design
  • Auto-dimming for different environments
  • -25°C to +70°C wide temperature range
  • EN 50155 compliance for railway application

Datasheed (PDF)

The GOT712-837 is an EN50155 compliant 12.1" fanless touch panel computer for railway applications. The railway panel PC is design to support the low power quad-core Intel® Atom™ processor E3845 1.91 GHz, and is equipped with a 12.1-inch XGA TFT LCD display with high brightness LED backlight (800 nits) and auto-dimming control, which allows a train operator to easily read any operational status messages, even under direct sunlight. This feature-rich panel PC has IP65 water/dust-proof front bezel, M12-type connectors with 1.5KV isolation and anti-vibration design. The 12.1-inch railway panel computer is particularly suitable for demanding IIoT HMI applications in the railway sector, including tasks like monitoring and controlling speed, temperature and security, or for fleet management.

LCD Panel
  • 12.1" XGA TFT LCD
  • 800 nits
  • 1024 x 768 pixels
CPU
  • Intel® Atom™ processor E3845 1.91 GHz (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • DDR3 4 GB (default) or 8 GB memory onboard
BIOS
  • AMI
COM

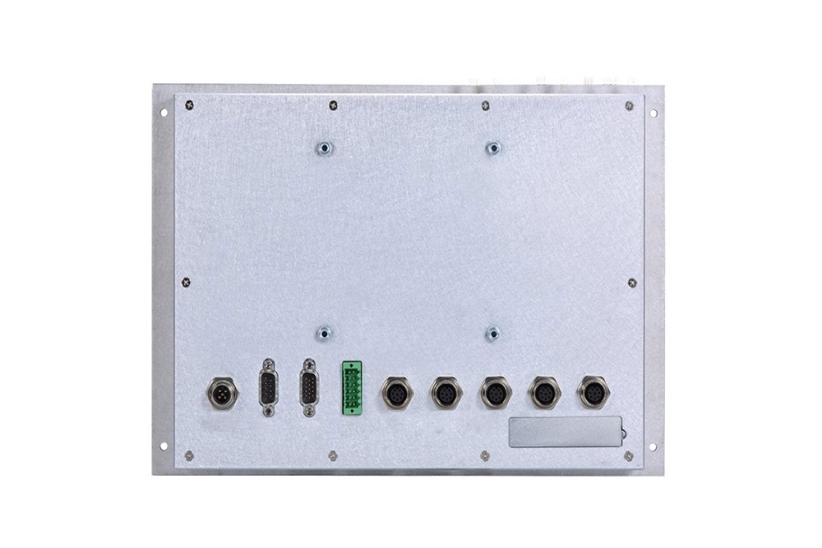

  • 2 x isolated RS-232/422/485 (M12, A-coded)
USB
  • 2 x USB 2.0 (M12, A-coded)
Ethernet
  • 2 x isolated 10/100/1000 Mbps (M12, X-coded)
Display
  • N/A
Audio
  • 1 x Audio (Line-out & Mic-in), Speaker (D-sub)
Storage
  • 16GB flash onboard
  • 1 x mSATA
Expansion
  • 2 x PCI Express Mini Card slot
Others
  • 1 x isolated CAN bus (D-sub)
  • 1 x isolated DIO (6 IN/2 OUT) (phoenix type)
  • 1 x isolated DC for power input (M12, A-coded)
Touchscreen
  • Alternative 5-wire resistive touch panel or keyboard
Front Bezel
  • IP65, NEMA 4 rugged protection, aluminum front bezel
Power Supply
  • 16.8V to 30V DC or 77V to 137.5V DC
  • 10ms hold up time (S2)
Power Comsumption
  • 35W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -25°C to +70°C (-13°F to +158°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • TBD
Dimensions (W x D x H)
  • 330 mm (13") (W) x 64.4 mm (2.53") (D) x 245 mm (9.65") (H)
Weight (net/gross)
  • 5.54 kg (12.21 lb)/3 kg (6.61 lb)
Certifications
  • EN 50155, EN 50121-3-2 EMC, EN 61373 (shock/vibration), EN 45545 (fire) compliance
EOS
  • Windows® 10 (IoT), Windows® 10, Windows® 8/8.1, WES 8, Windows® 7, WES 7
Mounting
  • Suspension mount
  • VESA mount
  • GOT712-837-R-E3845-24VDC
  • 12" XGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable CD (800 nits), 5-wire resistive touch screen and 24 VDC power input 110VDC Power Input (66V to 154VDC)
  • GOT712-837-R-E3845-110VDC
  • 12" XGA EN 50155 railway fanless touch panel computer with Intel® Atom® E3845, sunlight readable LCD (800 nits), 5-wire resistive touch screen and 110 VDC power input
  • 822B7100140E
  • GOT712 3G+GPS kit
  • 8812B7100A0E
  • GOT712 Wi-Fi kit
  • 594B8122820E
  • M12 A-coded USB cable
  • 594B7102100E
  • RS-232 cable
  • 594B7102700E
  • M12 X-coded LAN cable
