Agent336

CPU	NXP i.MX 8M Arm® Cortex®-A53, QuadLite 1.3GHz
Chipset	SoC integrated
System Memory	1 x 2GB LPDDR4 onboard
BIOS	N/A
COM	2 x RS-232/422/485
USB	2 x USB 3.0 Type A
Ethernet/PoE	1 x 10/100/1000 Mbps
Display	1 x HDMI
CANbus	1 x Isolated CANBus (D-SUB 9)
Digital I/O	1 x Isolated 2-in/2-out DIO (TB 2 x 4P)
Audio	N/A
Storage	1 x eMMC 8GB onboard 1 x Micro SD card socket
Expansion	1 x PCI Express Mini card socket (USB & PCIe interface) 1 x PCI Express Mini Card socket with 1 SIM socket inside (USB & PCIe interface)
Others	1 x RTC battery (for CR2032) *more than 5 years 1 x Reset button 1 x Console port 1 x Buzzer 5 x Antenna opening
Power Supply	9 to 36 VDC, typical: 12/24 VDC
Power Consumption	N/A
Watchdog Timer	256 levels, 0 to 128 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	40°C to +70°C (-40°C to +158°C)
Relative Humidity	5% - 95%, non-condensing
Vibration	3 Grms (5-500Hz, X, Y, Z directions)
Shock	N/A
Dimensions (W x D x H)	163.8 x 118 x 44 mm (6.4” x 4.6” x 1.7”)
Weight (net/gross)	TBC
Certifications	CE Class A, E-Mark
EOS	Yocto Linux, Kernel L4.9.51, Linux 4.9.88_2.0.0, Android O8.1.0 (Linux Kernel 4.9.78)
Mounting	Wall mount

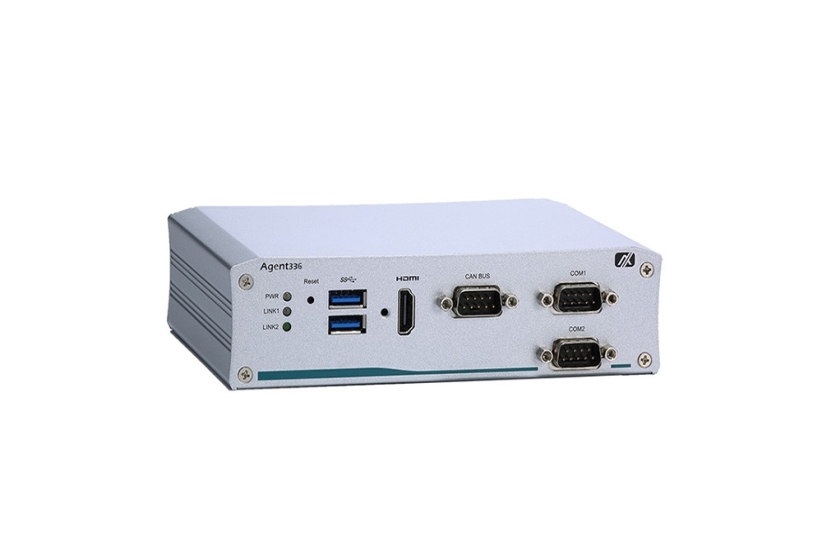

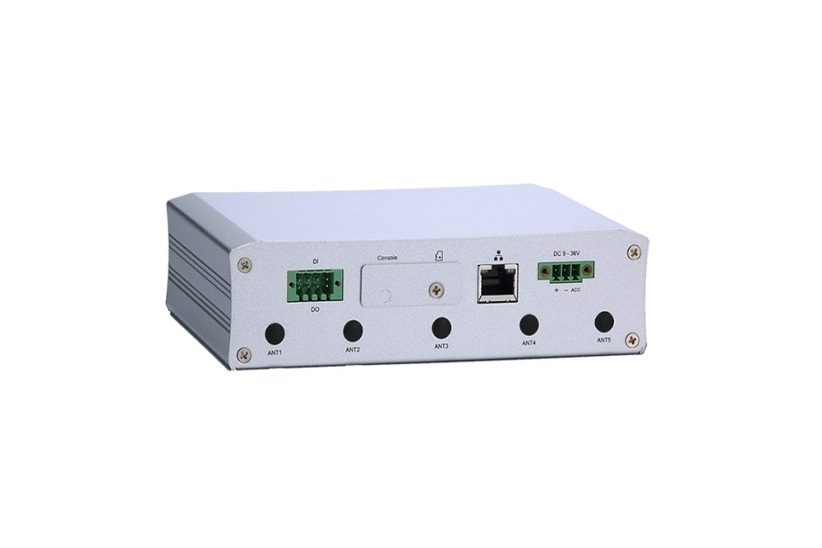

Agent336

Fanless embedded system with i.MX 8M processor, COM, LAN, USB, DIO (2-in/2-out), isolated CANBus and 2 PCIe Mini Card slots, power design with ACC ignition, E-Mark certification for vehicle box PC
