Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors, Dual Modular I/O Expansion Design

  • 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake-U)
  • 2 PIM (Plug-in I/O Module) slots
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 48 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • 1 swappable 2.5" SATA drive tray

The ICO500-518 featuring flexible I/O expansion, sufficient storage and network capability is well-suited for transportation, public utility, smart building, solar energy, as well as factory automation fields. By bundling Axiomtek’s intelligent AMS software solution for device monitoring and remote management, the ICO500-518 is able to implement environment signal monitoring, edge analytics and remote device management in the IIoT world. It has also passed the EN 50121-4 certified for railway applications. The rugged high computing edge gateway has scalable CPU options with the 7th gen Intel® Core™ i7/i5/i3 (codename: Kaby Lake-U) or Celeron® processors and supports one DDR4-2133 SO-DIMM slot for up to 16GB of system memory. The ICO500-518 features basic benefits whether low latency or cost efficiency; moreover, offering much more other advantages for IIoT applications. It not only supports multiple OT communication protocols that can significantly reduce the effort required to collect data from different field devices, but also provide local intelligence to allow operators respond faster to events that happen at the remote site and minimizes latency between edge devices and the cloud server. Also, with TPM 2.0, this IIoT edge gateway provides tailored levels of security depending on the application needs. Axiomtek’s ICO500-518 has two optional plug-in I/O module slots and four different types of I/O modules to meet different customization requirements. An integrator can choose from four available I/O modules including an 8-port GbE LAN module; 8-port isolated RS-232/422/485 module; 4-port isolated RS-232/422/485 with one isolated DIO (8-in/8-out) module; 8-port isolated CANbus 2.0A/B module to customize the ICO500-518 to fit its specific project requirements. Additionally, the ICO500-518 offers flexible communication options - two full-size PCI Express Mini Card slots and one external SIM card slot for 4G/3G, GPS, LoRaWAN, Wi-Fi and Bluetooth connections. Furthermore, it supports swappable 2.5-inch SATA drive and external CFastTM card to provide sufficient storage capability. For withstanding harsh operating conditions, this IP40-rated embedded box PC offers an extended operating temperature range of -40°C to 70°C, a wide range DC input of 12V to 48V with OVP, UVP, OCP, RPP power protection, and up to 3G vibration endurance.

  • Intel® Core™ i7-7600U 2C @ 2.8GHz
  • Intel® Core™ i5-7300U 2C @ 2.6GHz
  • Intel® Core™ i3-7100U 2C @ 2.4 GHz
  • Intel® Celeron® 3965U 2C @ 2.2 GHz
  • SoC integrated
System Memory
  • 1 x DDR4-2133 SO-DIMM, up to 16GB
  • 1 x RS-232/422/485
  • More COM ports available from I/O modules
  • 4 x USB 3.0
  • 2 x GbE LAN
  • More LAN ports available from I/O modules
  • N/A
  • Available from extension I/O modules
Digital I/O
  • 1 x Isolated DIO (4-in/4-out)
  • More DIO ports available from I/O modules
Analog Input
  • N/A
  • 1 x HDMI
  • 1 x VGA
  • 2 x Full-size PCI Express Mini Card slot
  • 1 x External SIM card slot

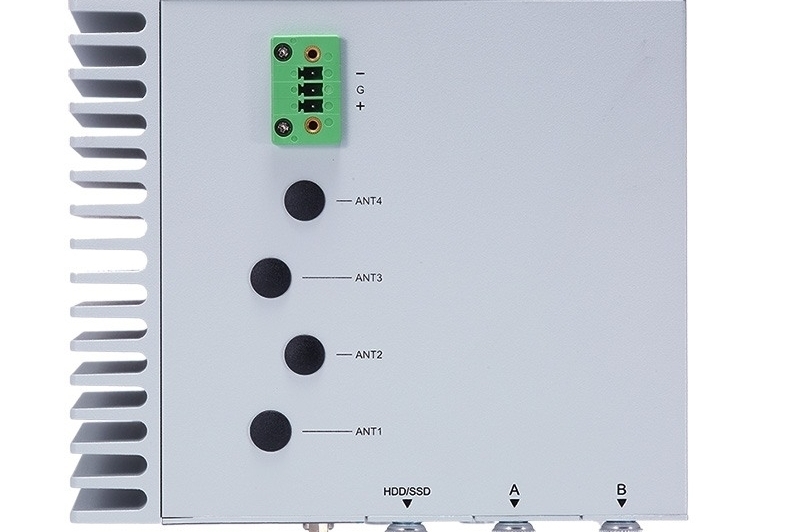

  • 4 x SMA antenna opening
  • 1 x Swappable 2.5" SATA drive (9.5 mm height)
  • 1 x External CFast™ card
  • 2 x PIM slot
Power Supply
  • 12 to 48 VDC, OVP, UVP, OCP, RPP power protection design
Watchdog Timer
  • 255 levels, 1 to 255 sec.
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with 2 PIM modules (PIM700 excluded)
  • -40°C to +60°C (-40°F to +140°F) with 1 PIM700, 1 the other PIM module
  • -40°C to +50°C (-40°F to +122°F) with 2 PIM700
Relative Humidity
  • 10% to 95%, non-condensing
  • 3 Grms with SSD, DIN-rail/wall mounting (5 to 500Hz, X/Y/Z direction; random)
(W x D x H)
  • 145 x125 x155 mm (5.70" x 4.92" x 6.10")
Weight (net/gross)
  • 2.11 kg (4.65 lb)/3.3 kg (7.27 lb)
  • CE (Class A), FCC, EN 50121-4
EOS Support
  • Windows® 10
  • Linux support package
Software Support
  • AMS.AXView
  • DIN-rail (standard)
  • Wall mount (optional)
  • ICO500-518-Celeron
  • Fanless embedded system with Intel® Celeron® 3965U 2.2 GHz processor, 4 USB 3.0, 2 RJ-45 LAN, COM, DIO (4-in/4-out), 2.5”SATA tray, HDMI, VGA
  • ICO500-518-i3
  • Fanless embedded system with Intel® Core™ i3-7100U 2.4 GHz processor, 4 USB 3.0, 2 RJ-45 LAN, COM, DIO (4-in/4-out), 2.5”SATA tray, HDMI, VGA
  • ICO500-518-i5
  • Fanless embedded system with Intel® Core™ i5-7300U 2.6GHz processor, 4 USB 3.0, 2 RJ-45 LAN, COM, DIO (4-in/4-out), 2.5” SATA tray, HDMI, VGA
  • ICO500-518-i7
  • Fanless embedded system with Intel® Core™ i7-7600U 2.8GHz processor, 4 USB 3.0, 2 RJ-45 LAN, COM, DIO (4-in/4-out), 2.5” SATA tray, HDMI, VGA

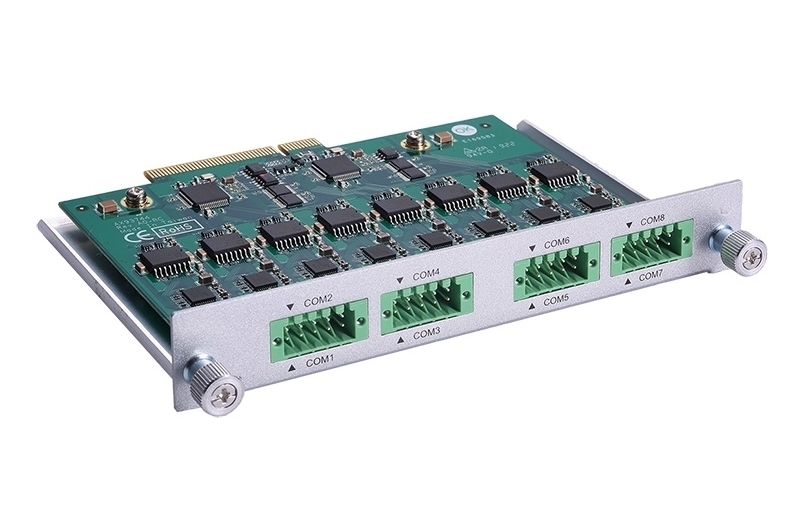

  • PIM100
  • 8 x isolated, 4-wire COM (RS-232/422/485)

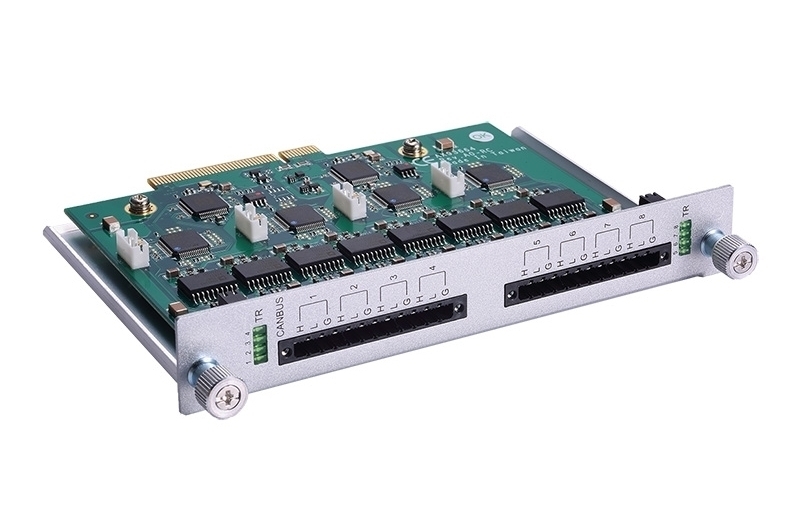

  • PIM101
  • 8 x isolated CANbus 2.0 A/B
  • PIM700
  • 8 x RJ-45 Gb Ethernet
  • PIM900
  • 4 x isolated, 4-wire COM (RS-232/422/485) & isolated 8-in/8-out DIO
  • 2.5” SATA SSD
  • 16GB or above
  • CFast™
  • 16GB or above
  • 4GB to 16GB
