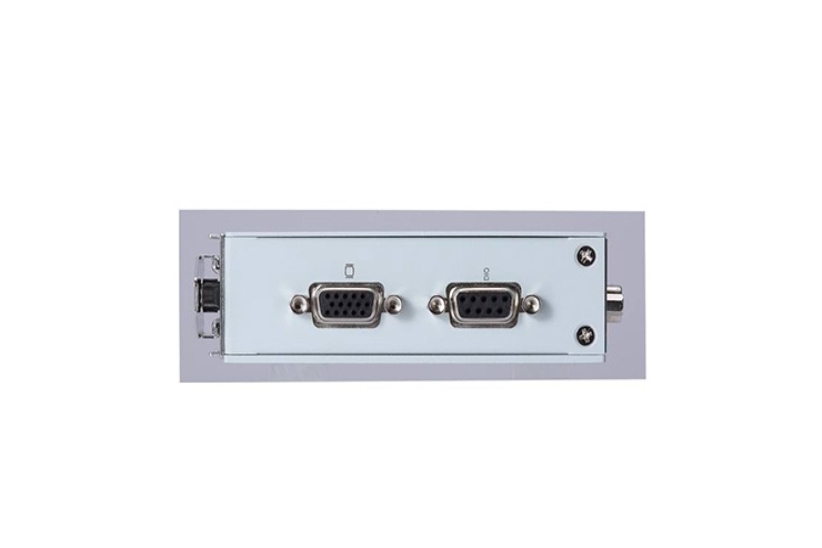

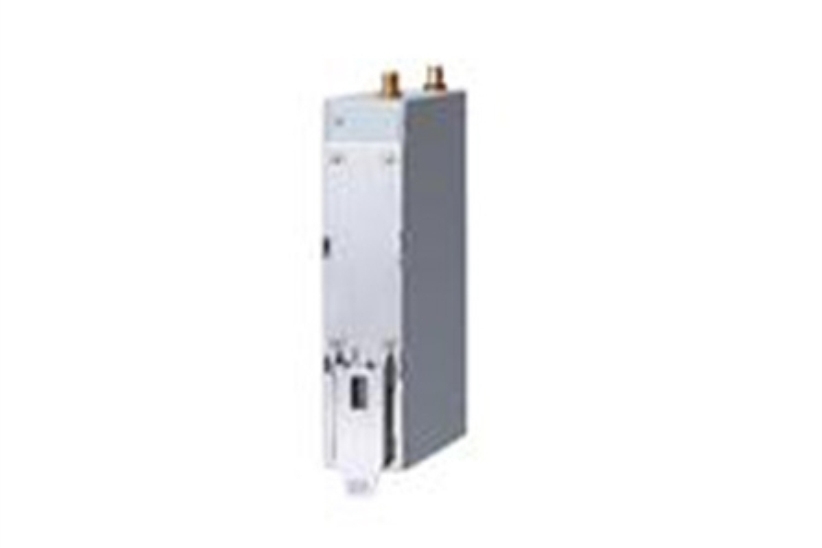

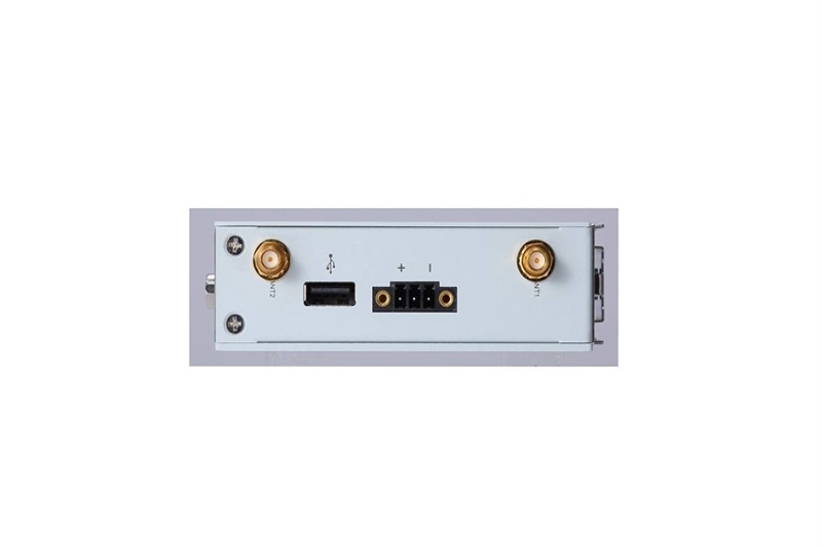

ICO100-839

Robust DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, 2 COM, LAN, 2 USB and DIO

  • Extreme cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350
  • 2 COM, 2 USB and GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • AXView 2.0 intelligent remote monitoring software for IIoT

Datasheed (PDF)

The ICO100-839 is a DIN-rail fanless embedded system designed to support the low-power Intel® Celeron® processor N3350. This DIN-rail industrial IoT gateway supports one DDR3L SO-DIMM slot with up to 8 GB system memory. Its proven rugged construction ensures reliable operation in harsh environments with an extended temperature range of -20°C to 70°C and anti-vibration up to 2G. Additionally, the wide range 12V-24V DC power input with a lockable terminal block type connector is suitable for industrial automation fields. The overvoltage and reverse protection lowers the risk of crucial data loss. The outstanding Intel® Atom™-based ICO100-839 is a perfect solution for industrial IoT applications such as smart factory automation and smart energy. The DIN-rail industrial IoT gateway offers an outstanding price/performance ratio with good quality. It comes with sufficient I/O connectivity while measuring only 31 x 100 x 125 mm. The I/O interfaces include two RS-232/422/485 ports, two USB 2.0 ports, one Gigabit Ethernet, one VGA and one DIO. Furthermore, the Intel® Apollo Lake-based ICO100-839 is equipped with two PCI Express Mini Card slots, one for mSATA storage card and another for 3G/GPRS/Wi-Fi connections.

CPU
  • Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)
Chipset
  • SoC integrated
System Memory
  • 1 x SO-DIMM DDR3L-1866, up to 8 GB
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps
  • (Intel® i211-AT for ICO100)
    (Intel® i210-IT for ICO100-WT)
    Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female connector)
Analog Input
  • N/A
Display
  • 1 x VGA
Wireless
  • 1 x full-size PCI Express Mini Card slot with SIM slot (for wireless module )
  • 1 x full-size PCI Express Mini Card slot (for wireless module or mSATA
Storage
  • mSATA shared with PCI Express Mini Card slot (option eMMC flash onboard)
Others
  • 1 x DC power input with terminal block
Power Supply
  • Power Input Range: 12 to 24 VDC, 1.15 to 0.62A (13.80 to 14.88W)
  • Protection: OVP (±20%), reverse protection
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
  • -40°C to +70°C (-40°F to +158°F) (ICO100-WT)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions
(W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.46 kg (1 lb)
Certifications
  • CE
  • FCC Class A
EOS Support
  • Windows® 10 IoT, Linux support package, AXView 2.0
Mounting
  • DIN rail
  • Wall Mounting
  • ICO100-839-N3350-DC (P/N-E22C100104)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 2 COM, LAN, 2 USB and DIO (-20°C to +70°C)
  • ICO100-839-N3350-WT-DC (P/N-E22C100105)
  • Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 2 COM, LAN, 2 USB and DIO (-40°C to +70°C)
  • mSATA
  •
  • 8812C1003A0E
  • ICO100/ICO120 wall mount bracket kit SFP
  • 8816N3234A0E
  • 3G/GPS UC20G kit for tBOX (3G ANT) (E)
  • 8816N3235A0E
  • 3G/GPS UC20G kit for tBOX (3G/GPS ANT) (E)
  • 8812C3003A0E
  • SparkLAN WPEA-152GN Wi-Fi kit ICO SFP (E)
  • 8812C3004A0E
  • SparkLAN WPEA-251N Wi-Fi kit ICO SFP (E)
  • 822C3001060E
  • LTE SIMCOM SIM7100C (TW) for ICO300 SFP
Date Description Version Download File
2017/12/15 Intel Graphic_win10_64 VA1.0 396,532.8KB
2017/12/15 Intel TXE Firmware_win10_64 VA1.0 323,386.3KB
2017/12/15 Intel Chipset_win10_64 VA1.0 5,206.1KB
2017/12/15 Intel Ethernet_win10_64 VA1.0 49,573.8KB
2017/12/15 Intel Serial IO_win10_64 VA1.0 5,800.9KB

Manual

Date Description Version Download File
2017/12/15 ICO100-839 User's Manual VA1_07-14-2017 VA1.0 2,336.8KB

Certificates

Date Description Version Download File
2020/02/13 CE-Conformity Declaration   49.9KB
2020/02/12 FCC Verification   223.4KB
2020/02/12 CE EMC Verification   225.2KB
2019/10/23 CE-Conformity Declaration   96.3KB
