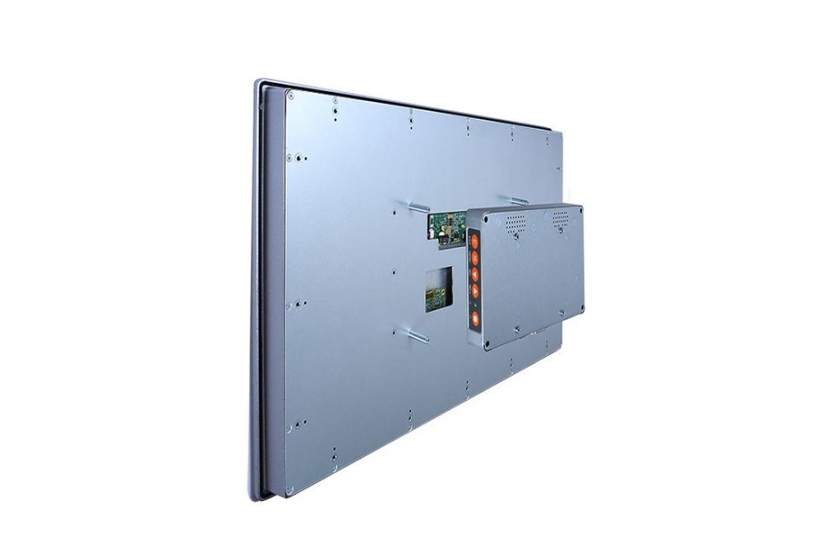

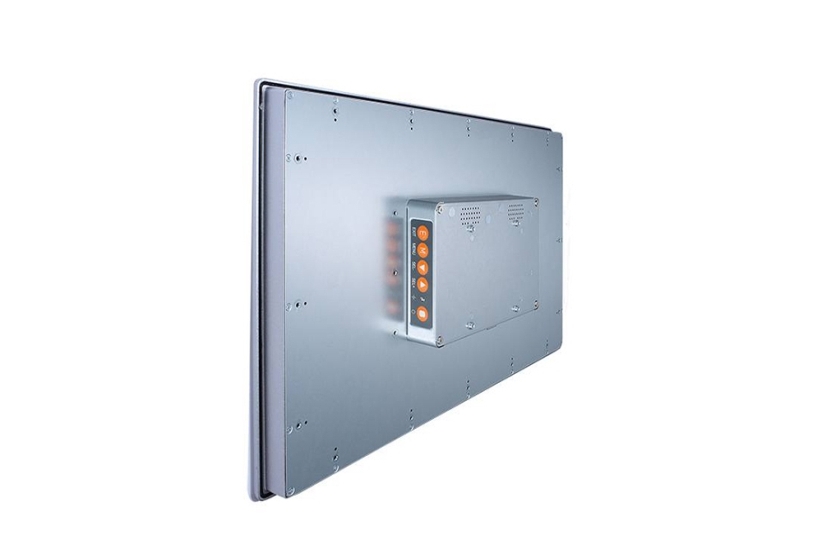

P6157W-V2

Front Bezel	NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel	15.6" WXGA TFT LCD
Max Colors	16.7M
Active Area (mm)	344.232 x 193.536
Max. Resolution	1366 x 768
Display Mode	VGA 640 x 350 (70Hz) VGA 640 x 480 (60/72/75Hz) VGA 720 x 400 (70Hz) SVGA 800 x 600 (60/72/75Hz) XGA 1024 x 768 (60/72/75Hz) WXGA 1366 x 768 (60Hz)
Pixel Pitch (mm)	0.252 x 0.252
Backlight MTBF (hrs)	50,000 hrs
Viewing Angle (H/V)	170°/160°
Response Time	8 ms
Contrast Ratio	500 (TYP.)
LCD Brightness (cd/m²)	400 nits
Display Control	OSD (on screen display)

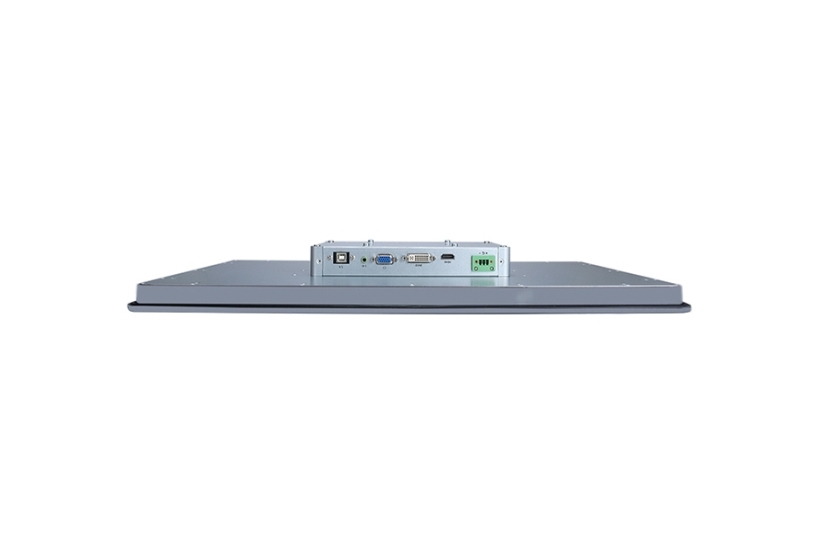

I/O Interface	1 x USB for touchscreen version 1 x Audio (Line-in) 1 x VGA 1 x HDMI 1 x DVI 1 x Screw type or Phoenix type power input
Touchscreen	Multi-touch projective capacitive (optional)
Power Adapter	Screw-type external AC/DC power adapter
Power Comsumption	16 W
Operating Temperature	0°C to +50°C (+32°F to +131°F)
Dimensions (W x D x H)	396.8 x 247.1 x 54 mm (15.62" x 9.73" x 2.13")
Weight (net/gross)	3.9 kg (8.598 lb)/5.88 kg (12.963 lb)
Mounting	Panel mount Wall mount Desktop stand VESA FPMPMI mount
Certifications	CE
