P6103W

Front Bezel	NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel	10.1" WXGA TFT LCD
Max Colors	16.7M
Active Area (mm)	216.96 x 135.60
Max. Resolution	1280 x 800
Display Mode	VGA 640 x 350 (70Hz) VGA 640 x 480 (60/72/75Hz), VGA 720 x 400 (70Hz) SVGA 800 x 600 (60/72/75Hz), WXGA 1280 x 800 (60/72/75Hz)
Pixel Pitch (mm)	0.1695 x 0.1695
Backlight MTBF (hrs)	25,000 hrs
Viewing Angle (H/V)	170°/170°
Response Time	25ms
Contrast Ratio	800 (TYP.)
LCD Brightness (cd/m²)	350 nits
Display Control	OSD (on screen display)

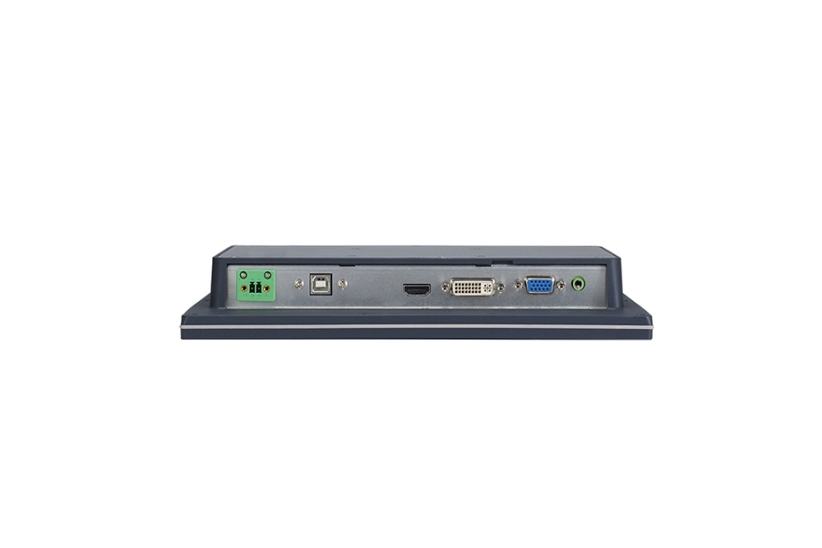

I/O Interface	1 x RS-232 or USB for touchscreen version 1 x DVI-D 1 x VGA 1 x HDMI 1 x Screw-type DC power input
Touchscreen	Projected capacitive touch
Power Adapter	Screw-type external AC/DC power adapter
Power Comsumption	15 W
Operating Temperature	0°C ~ +50°C (+32°F ~ +122°F)
Dimensions (W x D x H)	260.8 x 38 x 194.1 mm (10.27" x 1.5" x 7.64")
Weight (net/gross)	1.036 kg (2.28 lbs)/1.6 kg(3.53 lbs)
Mounting	Panel mount Wall mount Desktop stand VESA mount
Certifications	CE

P6103WPC-AC-U-US-EU
AC Power, Capacitive (USB) multi-touch screen
P6103WPG-AC-US-EU
AC Power, Glass
P6103WPC-24VDC-U
24VDC Power (12VDC Power by jumper setting), Capacitive (USB) multi-touch screen
P6103WPG-24VDC
24VDC Power (12VDC Power by jumper setting), Glass
5946L203800E
HDMI cable
59461713400E DVI cable
82251031000E
Panel mount kit
82238460050E
Wall mount kit
E226171106
Desktop stand
