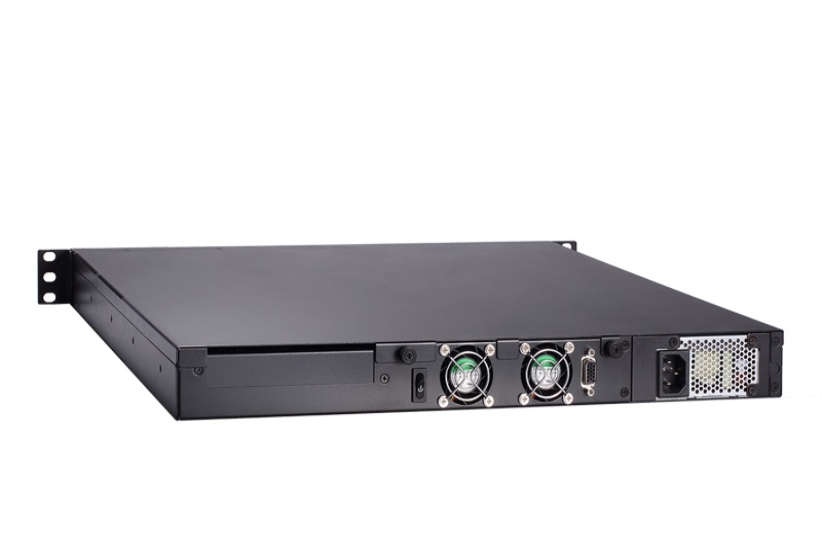

NA592

1U 19" Rackmount Network Appliance with 10th Gen Intel® Core™ and Intel® Xeon® W-1200 Processors (Comet Lake)

Datasheed (PDF)

  • 10th gen Intel® Core™ i9/i7/i5/i3 and Intel® Xeon® W-1200 processors
  • Intel® W480E chipset
  • Four DDR4 2933MHz ECC (By CPU) or non-ECC UDIMM, max.128GB
  • 8 GbE RJ-45, 2 SFP (Intel® i350) and 2 NIC modules
  • 2 pairs of LAN Bypass
  • 2 USB 3.0 and 2 2.5" HDD/SSD bays
  • 1 PCIe x8 FH/HL (optional), 3 M.2 Key B/E/M, 1 Mini PCIe
  • 2 smart fans
Form Factor
  • 1U rackmount
CPU
  • 10th gen Intel® Core™ i9/i7/i5/i3 and Intel® Xeon® W-1200 processors
Chipset
  • Intel® W480E
System Memory
  • 4 x DDR4 2933MHz ECC (By CPU) or non-ECC UDIMM, max.128GB
BIOS
  • AMI
Ethernet
  • 8 x GbE RJ-45 & 2 x SFP (Intel® i350)
  • 2 x NIC modules through AX98621 I/O board (optional)
LAN Bypass
  • 2-pair LAN Bypass
LAN Module
  • 2 x NIC modules through AX98621 I/O board (optional)
Storage
  • 2 x 2.5" SATA HDD
  • 1 x M.2 2242 Key M slot (SATA)
Expansion
  • 1 x PCIe x8 through AX96708 riser card (optional)
  • 1 x M.2 Key E 2230 (PCIe x1)
  • 1 x M.2 Key M 2242/2280 (PCIe x4) through AX98621 I/O board (optional)
  • 1 x Mini-PCIe (PCIe x1 in default, SATA by BOM option)
  • 1 x nano SIM socket
I/O Interface
  • 1 x Console (RJ-45)
  • 2 x USB 3.0
  • 1 x LCM with 4 keypads
  • 1 x VGA (optional)
Power Supply
  • 300W single power supply
  • 400W 1U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross)
  • 6.0 kg/9.5 kg (single power)
  • 7.3 kg/10.8 kg (redundant power)
OS
  • Linux/Windows
Certifications
  • CE/FCC Class A
Others
  • Onboard TPM 2.0
  • BMC AST2500, IPMI 2.0 (optional)
  • NA592-480E-A (P/N-E26E592100)
  • 1U 19" Rackmount Network Appliance with 10th Gen Intel® Core™ & Xeon® W-1200, Intel® W480E, 4 8RJ+2SFP LAN ports, 2-pair LAN Bypass, optional, IPMI (by project), TPM 2.0, 2 optional NIC slots, 1 x PCIe x8 (optinal, only supports 1 NIC slot), AC single 300W
  • NA592-480E-B (P/N-E26E592101)
  • 1U 19" Rackmount Network Appliance with 10th Gen Intel® Core™ & Xeon® W-1200, Intel® W480E, 4 8RJ+2SFP LAN ports, 2-pair LAN Bypass, IPMI (by project), TPM 2.0, 2 optional NIC slots, 1 x PCIe x8 (optinal, only supports 1 NIC slot), AC redundant 400W
  • 83986211050E
  • AX98621, I/O board for 2 NIC slots and M.2 SFP
  • 83967081000E
  • AX96708, riser card for PCIe x8 (rear)
  • 83986211060E
  • AX98621, I/O board for 1 NIC slot, M.2, and 1 PCIe x8 slot
  • 5916E552000E
  • DB9F-RJ-45, 1.8M console cable for Cisco
  • 594E8602000E
  • VGA cable IDC 16P 2.0/D_SUB 15P, L=37cm
  • 59906000010E
  • Power cord YP-12/YC-12 (Japan)
  • 59903000000E
  • Power cord YP-22/YC-12 (Europe)
  • 59905000000E
  • Power cord YP-35/YC-12 (Australia)
  • 59904010000E
  • Power cord/UK YP-61A/YC-12, L = 1830 mm
