GOT817-834

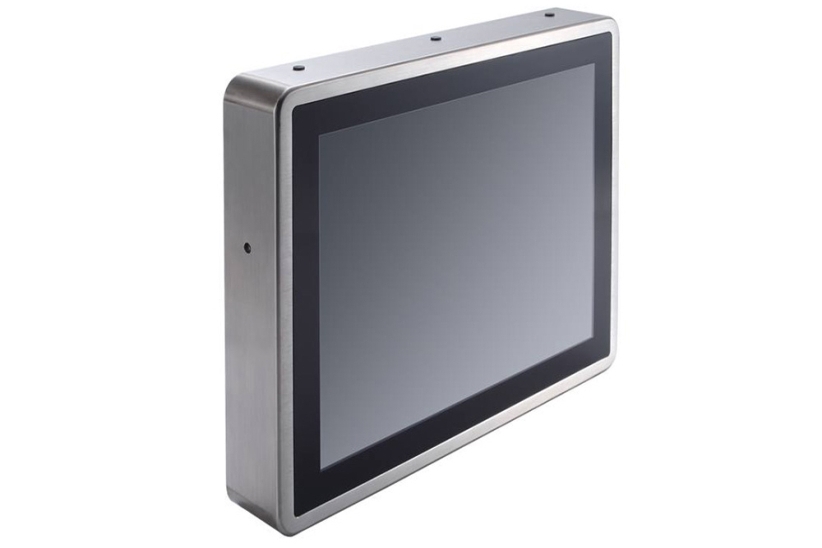

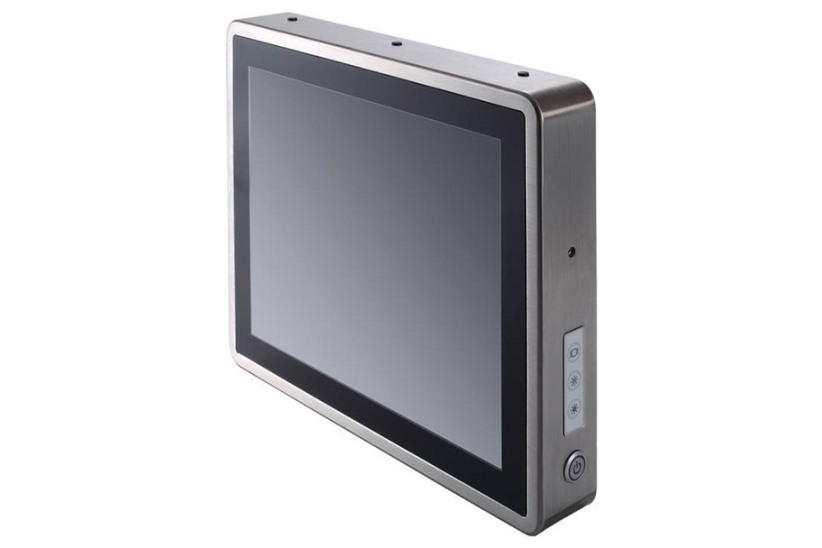

17" SXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Atom® Proces

  • 17" SXGA TFT LCD flat bezel projected capacitive (or resistive) touch
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -20°C to +55°C wide operating temperature range
  • Fanless system with Intel® Atom® processor E3827
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 12 to 36 VDC wide range power input

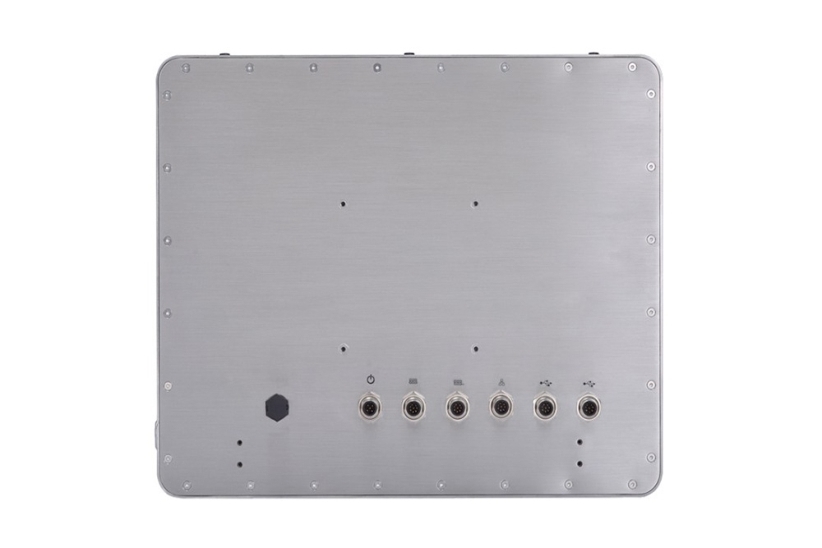

  • M12 type I/O connectors for harsh environments

The hardened GOT817-834 is fully IP66 & IP69K-rated and made of SUS316 stainless steel for use in food, beverage, pharmaceutical or chemical industry. Its secured design, fanless & noiseless advantages, and IP66-rated waterproof enclosure keep the entire panel system working efficiently and reliability in harsh environments against hazards including dust, dirt, water, oil, and chemicals. For more, the wide temperature design of -20°C to 55°C is ideal for freezing or high temperature conditions within food processing environments. The flat panel design prevents accumulation of dust and moisture and also makes cleaning easier, It can withstand vibration up to 2G, 5 to 500 Hz. With its rugged construction and extreme slim design, the Axiomtek GOT817-834 is very suitable for mounting in food and chemical industries, pharmaceutical industry, transportation and oil pipeline monitoring.

LCD Panel
  • 17" SXGA TFT LCD
  • 350 nits
  • 1280 x 1024 pixels
CPU
  • Intel® Atom® processor E3827 1.75 GHz (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, M12 A-Coded)
USB
  • 4 x USB 2.0 (M12 A-Coded)
Ethernet
  • 1 x 10/100/1000 Mbps (M12 X-Coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SSD
  • 1 x CFast™
Expansion
  • 2 x PCI Express Mini Card slot
Others
  • Waterproof, dust proof ventilation valve
Touchscreen
  • 5-wire resistive touch or projected capacitive multi-touch
Front Bezel
  • Stainless type 316
Power Supply
  • 12 to 36 VDC
Power Comsumption
  • 50W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -20°C to +55°C (-4°F to +131°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • 2G, 5 - 500Hz, random for 2.5" SSD
  • 2G, 5 - 500Hz, random for CFast™
Dimensions (W x D x H)
  • 250 x 585 x 615 mm (9.84” x 23.03” x 24.21”)
Weight (net/gross)
  • 7.04 kg (15.52 lb)/ 10.3 kg (22.71 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT, Windows® 10, Windows® 8/8.1, WES 8, Windows® 7, WES 7
Mounting
  • Suspension
  • VESA mount
  • GOT817-834-C-DC
  • 17" SXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Atom® E3827, projected capacitive touch screen, flat-bezel design and 12 to 36 VDC power input
  • GOT817-834-C-RF-DC
  • 17" SXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Atom® E3827, projected capacitive touch screen, flat-bezel design, 12 to 36 VDC power input, and Wi-Fi or 3G
  • GOT817-834-R-DC
  • 17" SXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Atom® E3827, 5-wire flat resistive touch screen, flat-bezel design and 12 to 36 VDC power input
  • GOT817-834-R-RF-DC
  • 17" SXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Atom® E3827, 5-wire flat resistive touch screen, flat-bezel design, 12 to 36 VDC power input and Wi-Fi or 3G
  • 594B8122100E
  • Water-proof COM cable (1.8 m)
  • 594B8122820E
  • Water-proof USB cable (1.8 m)
  • 594B8152710E
  • Water-proof LAN cable (1.8 m)
  • 50966D45010E
  • Adapter 24V 120W. M12 A-code 5P. LTE120ES
  • 822B8120070E
  • GOT812 keyboard bracket (with keyboard)
