GOT815L-511

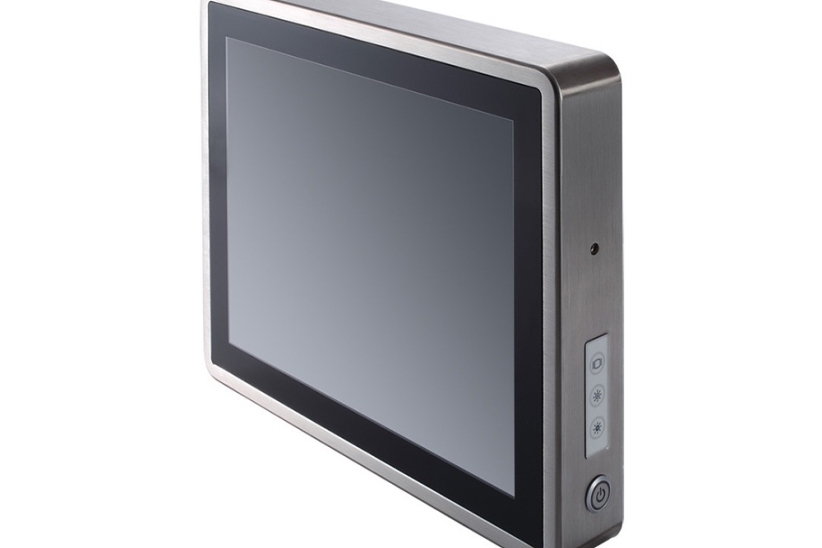

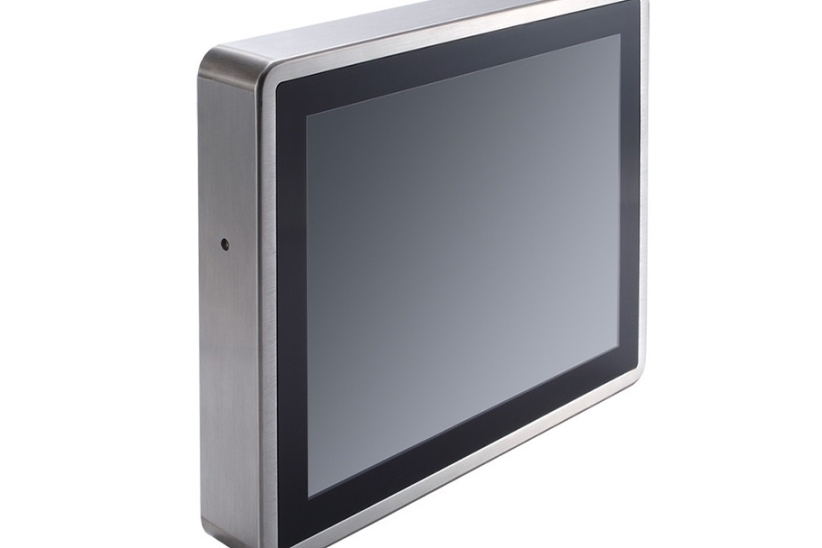

15" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300

  • 15" XGA TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-7300U processor
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input
  • Supports suspension and VESA mount

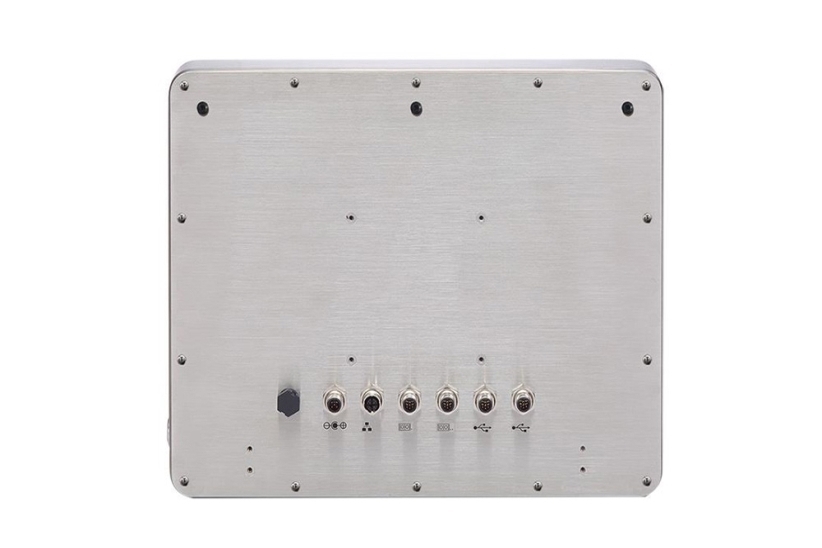

  • M12 type connectors for harsh environments

The highly reliable GOT815L-511 adopts a high brightness LCD display with 420 nits of brightness to ensure visibility in harsh environments with varying light intensity and come with options for projected capacitive touch or 5-wire flat resistive touchscreen display. The SUS316 stainless steel case can prevent bacteria growth and rust brought on by prolonged usage in moist and wet environments. Furthermore, the flat panel design prevents the accumulation of dust and moisture and also makes cleaning easier. The GOT815L-511 is powered by the Intel® Core™ i5-7300U processor (codename: Kaby Lake) for greater computing performance and better efficiency. Designed to meet the challenges in critical environments, it supports a wide operating temperature range from -20°C to 50°C and can withstand vibration up to 1G, 5 to 500 Hz. The rugged stainless touch panel PC also offers flexible power options with wide range 9-36V DC power input. Combined with a fully IP66/IP69K-rated water/dust-proof enclosure and M12-type connectors, the industrial panel system can resist ingress of high-temperature steam and pressure washing, well suited for use in food and chemical factory, as well as outdoor applications such as parking management system

LCD Panel
  • 15" XGA TFT LCD
  • 420 nits
  • 1024 x 768 pixels
CPU
  • Intel® Core™ i5-7300U 3.5 GHz (Kaby Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, M12 A-coded)
USB
  • 4 x USB 2.0 (M12 A-coded)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I210-IT; M12 X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SSD HDD or 1 x 2.5" SATA HDD
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x Half-size PCI Express Mini Card slot
Others
  • 1 x 2.5" SSD HDD or 1 x 2.5" SATA HDD (9.5 mm height)
Touchscreen
  • 5-wire resistive touch or projected capacitive multi-touch
Front Bezel
  • Stainless type 316
Power Supply
  • 9 to 36 VDC
Power Comsumption
  • 45W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 382 x 55 x 305 mm (15.4" x 2.17" x 12.01")
Weight (net/gross)
  • 5.2 kg (11.46 lb)/8.4 kg (18.5 1b)
Certifications
  • CE
EOS
  • Windows® 10 IoT, Windows® 10
Mounting
  • Suspension
  • VESA mount
  • GOT815L-511-C-DC
  • 15" XGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-7300U, projected capacitive touch screen, 420 nits LCD and 9 to 36 VDC power input
  • GOT815L-511-R-DC
  • 15" XGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-7300U, 5-wire flat resistive touch screen and 9 to 36 VDC power input
  • 594B8122100E
  • Water-proof COM cable (1.8 m)
  • 594B8152710E
  • Water-proof LAN cable (1.8 m)
  • 594B8152820E
  • Water-proof USB cable (1.8 m)
  • 50966D45010E
  • Adapter 24V 120W, M12 A-code 5P, LTE120ES
  • 822B8120070E
  • GOT812 keyboard bracket (with keyboard)
