GOT5152T-845

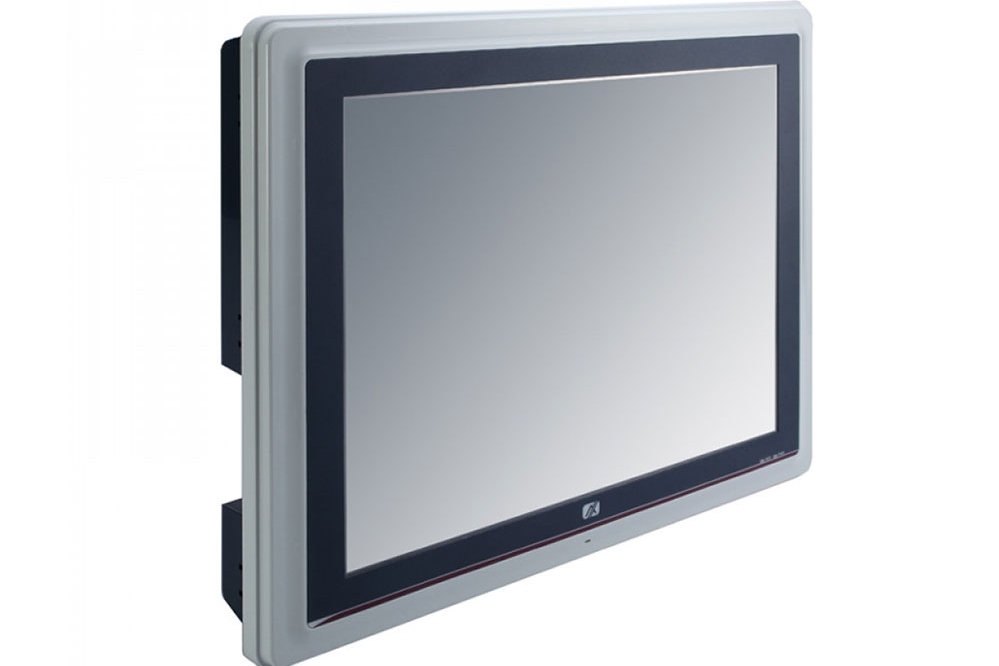

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060



  • 15" XGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor N3060
  • WLAN module and internal antenna
  • 2 GbE LAN, 4 USB and 2 COM
  • PCI Express Mini Card slot for easy expansion
  • Supports optional panel mount/wall mount/desktop stand
  • Supports RFID (optional)
  • Plastic and IP65-rated front bezel



The GOT5152T-845 is powered by the Intel® Celeron® processor N3060 and features 15" XGA TFT LCD display with LED backlight and 450 nits brightness. With a thickness of 54.6 mm, the budget-friendly 15-inch touch panel computer comes with one RS-232 port, one RS-232/422/485 port, two USB 2.0 ports, two USB 3.0 ports, two Gigabit LAN ports (Intel® i211AT Ethernet controller), one 8-bit DIO port, one HDMI port, and one audio port (Line-out). There is also an easily accessible external switch for AT/ATX mode selection. Besides, one 2.5” SATA HDD and one mSATA are available for additional storage expansion. Other highlights include two full-size PCI Express Mini Card slots and a built-in WLAN antenna for wireless network connectivity options. Various mounting kits such as panel mount, wall mount and desktop stand are supported. With an IP65-rated protection, light weight and ultra slim design, the GOT5152T-845 provides low power, reliable quality, rich features and cost-effectiveness for self-service kiosk and various smart automation applications.



LCD Panel
  • 15" XGA TFT LCD with LED backlight
  • 450 nits
  • 1024 x 768
CPU
  • Intel® Celeron® processor N3060 (up to 2.48 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232-422-485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x HDMI
Audio
  • Line-out
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x full-size PCI Express Mini Card with mSATA
  • 1 x full-size PCI Express Mini Card with SIM slot
Others
  • 1 x 8-bit DIO port (programmable, DB9)
  • 1 x switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 24 VDC overcurrent protection fuse
  • AC version: 100 ~ 240V AC-DC, 60W power adapter
Power Comsumption
  • 32 W
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • 0°C ~ +50°C (+32°F ~ +122°F)
Relative Humidity
  • 20% ~ 90% @ +40°C; non-condensing
Vibration
  • 2G, 10 ~ 500Hz, random for SSD
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7 mm (15.27" x 2.14" x 12.11")
Weight (net/gross)
  • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certificate
  • CE
EOS
  • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand



  • GOT5152T-845-24VDC

          15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)

  • GOT5152T-845-J

          15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector), and EMI class B

  • Wi-Fi + Bluetooth kit
  • Speaker kit
  • 881251520A0E

          Panel mount kit

  • 881251521A0E

          VESA mount kit

  • E226171106

          Stand kit

  • 881251203A0E

          RFID kit
